2271140 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
M12 MALE PNL.A CODE.5P.PCB TYPE.
| Part | Insert Material | Shell Finish | Number of Positions | Color | Current Rating (Amps) | Shell Material | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Shell Size - Insert | Termination | Orientation | Connector Type | Shielding | Ingress Protection | Mounting Feature | Primary Material | Contact Finish - Mating | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||

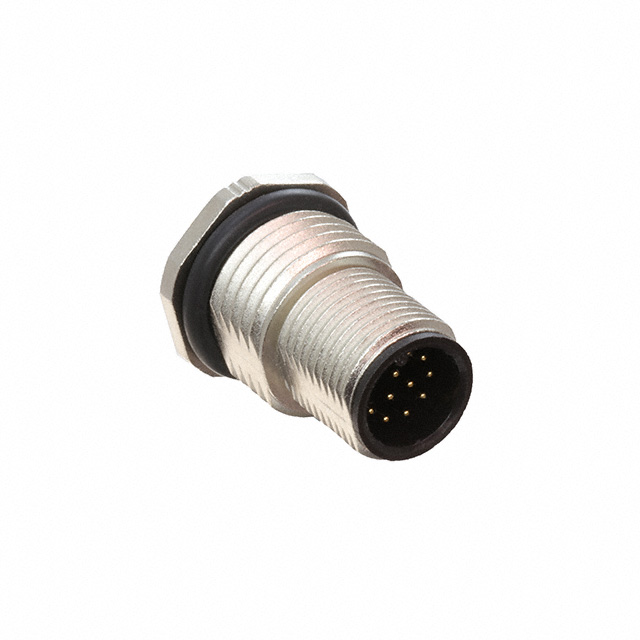

 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | Nickel | 12 | Silver | 2 A | Zinc Die Cast | 30 VAC | 0.5 µm | 19.7 µin | Panel Mount Through Hole | M12-12 | Solder | A | Male Pins Receptacle | Unshielded | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Metal | Gold | Brass | 85 °C | -40 °C |
TE Connectivity Raychem Cable Protection |
