C016 10E014 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

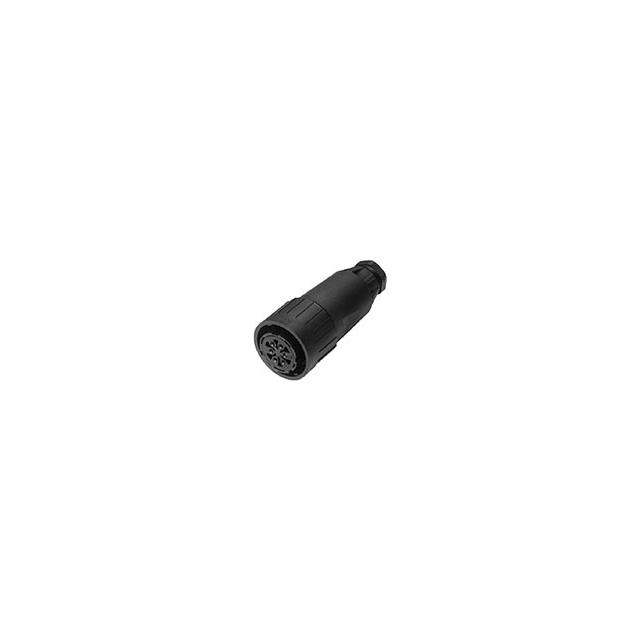

CONN PLG HSG FMALE 15POS INLINE
| Part | Mounting Type | Fastening Type | Housing Color | Contact Shape | Orientation | Shell Material | Shielding | Contact Type | Material Flammability Rating | Ingress Protection | Type | Includes | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Size | Connector Type | Note | Number of Positions | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Free Hanging (In-Line) | Bayonet Lock | Black | Circular | N (Normal) | Nylon 6/6 Polyamide (PA66) | Unshielded | Crimp | UL94 V-0 | IP65 - Dust Tight Water Resistant | For Female Sockets | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | Backshell Cable Clamp Coupling Nut | 125 °C | -40 C | 1.5 mm 1.6 mm | Plug Housing | Contacts Not Included | 15 | 2 |
 Amphenol Tuchel Industrial | Free Hanging (In-Line) | Bayonet Lock | Black | Circular | N (Normal) | Nylon 6/6 Polyamide (PA66) | Unshielded | Crimp | UL94 V-0 | IP65 - Dust Tight Water Resistant | For Female Sockets | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | Backshell Cable Clamp Coupling Nut | 125 °C | -40 C | 1.5 mm 1.6 mm | Plug Housing | Contacts Not Included | 15 | 2 |
