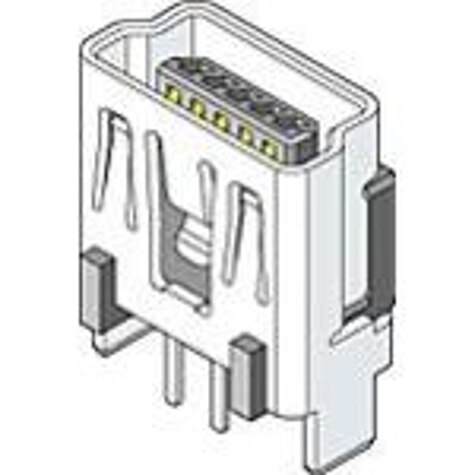

500075 Series
Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs with Dimples
Manufacturer: Molex
Catalog
Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs with Dimples
Beta
⌘K
Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs with Dimples
Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs with Dimples
Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs with Dimples
| Part | Insulation Color | Contact Finish | Material Flammability Rating | Shell/Shielding Material | Shielding | Mounting Feature | Number of Ports | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Specifications | Connector Type | Termination | Gender | Voltage - Rated | Number of Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | Gold | UL94 V-0 | Copper Alloy | Shielded | Vertical | 1 | Through Hole | 85 °C | -40 C | USB 2.0 OTG | USB - mini B | Solder | Receptacle | 30 VAC | 5 |
 Molex | Shielded | Vertical | 1 | Through Hole | 85 °C | -40 C | USB 2.0 OTG | USB - mini B | Solder | Receptacle | 30 VAC | 5 |
