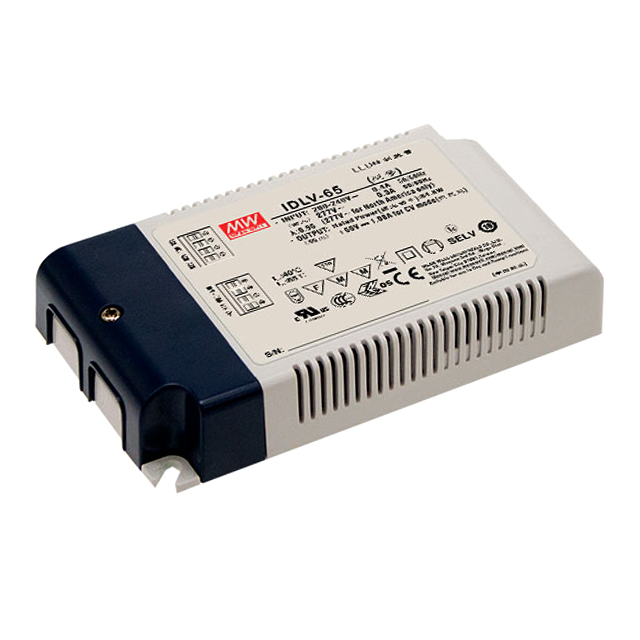

IDLV-65 Series

Catalog

LED DRIVER CV AC/DC 48V 1.35A

Part	Mounting Type	Efficiency	Dimming	Voltage - Output	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Type	Topology	Features	Number of Outputs	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation
MEAN WELL USA Inc. IDLV-65-48	Chassis Mount	89 %	Analog PWM	48 V	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	CB CCC CE cURus ENEC	Constant Voltage	AC DC Converter	OVP SCP	1	180 VAC	65 W	85 °C	-20 ░C	Terminal Block	295 VAC	1.35 A	3750 VDC
MEAN WELL USA Inc. IDLV-65-24	Chassis Mount	87 %	Analog PWM	24 V	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	CB CCC CE cURus ENEC	Constant Voltage	AC DC Converter	OVP SCP	1	180 VAC		85 °C	-20 ░C	Terminal Block	295 VAC	2.4 A	3750 VDC

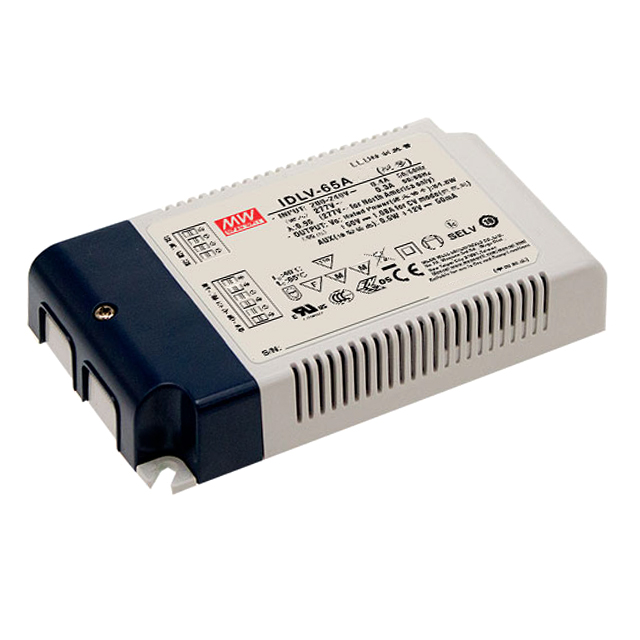

MEAN WELL USA Inc. IDLV-65A-24	Chassis Mount	87 %	Analog PWM	24 V	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	CB CCC CE cURus ENEC	Constant Voltage	AC DC Converter	OCP SCP	1	180 VAC		85 °C	-20 ░C	Terminal Block	295 VAC	2.4 A	3750 VDC
