746-054 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 54POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Gender	Number of Rows [custom]	Mounting Type	Read Out	Number of Positions	Color	Pitch	Pitch	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Card Type	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Termination Rows	Number of Rows
EDAC Inc. 746-054-540-606	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-553-606	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-553-601	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-545-206	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-540-201	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-545-201	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-520-106	Polyester Thermoplastic		Female		Through Hole	Single	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	54	Non Specified - Single Edge	Copper Alloy	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1
EDAC Inc. 746-054-525-506	Polyester Thermoplastic		Female		Through Hole	Single	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	54	Non Specified - Single Edge	Copper Alloy	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

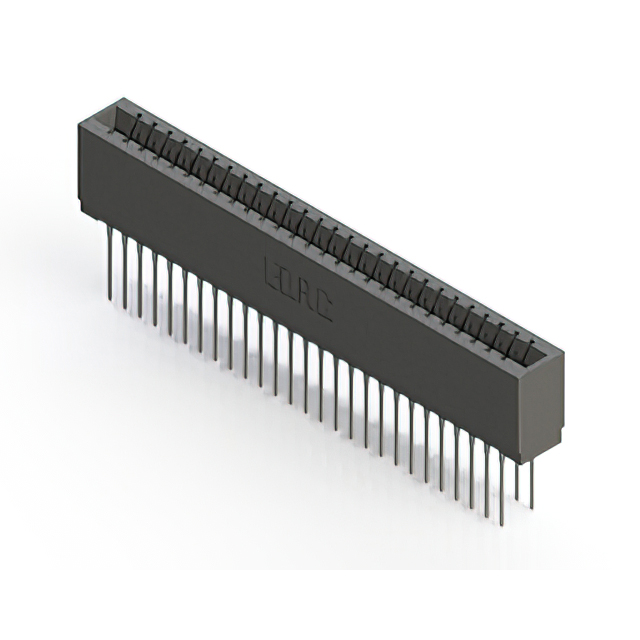

EDAC Inc. 746-054-540-601	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 746-054-525-601	Polyester Thermoplastic	2	Female	2	Through Hole	Dual	54	Black	3.18 mm	0.125 in	Cantilever	30 Áin	0.76 Ám	27	Non Specified - Dual Edge	Copper Alloy	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
