PPPN121 Series

Catalog

CONN HDR 12POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Termination	Insulation Color	Voltage Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPPN121BFLD	Flash	Polyester	Phosphor Bronze	Square	Solder	Black	150 VDC	1	-40 C	105 ░C	Header	0.181 in	4.6 mm	Female Socket	Flash	Gold	12	0.079 "	2 mm	Push-Pull	Gold	All	2 A	Surface Mount	UL94 V-0
Sullins Connector Solutions PPPN121BFLC	Flash	Polyester	Phosphor Bronze	Square	Solder	Black	150 VDC	1	-40 C	105 ░C	Header	0.181 in	4.6 mm	Female Socket	Flash	Gold	12	0.079 "	2 mm	Push-Pull	Gold	All	2 A	Surface Mount	UL94 V-0

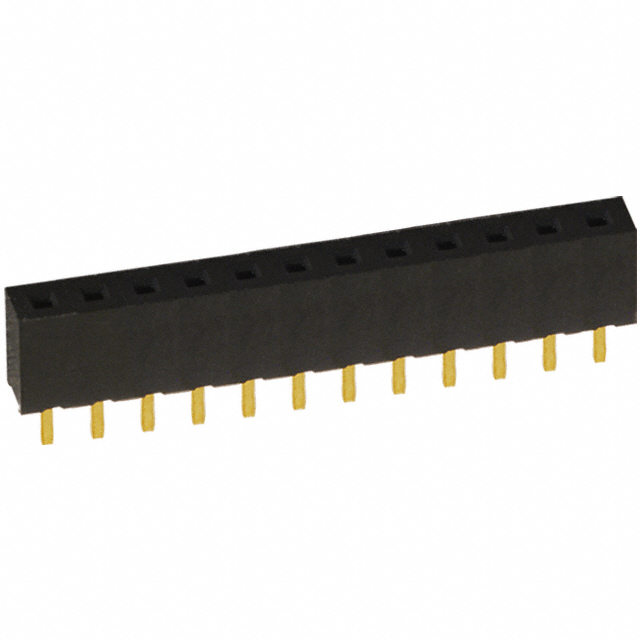

Sullins Connector Solutions PPPN121BFCN	Flash	Polyester	Phosphor Bronze	Square	Solder	Black		1	-40 C	105 ░C	Header			Female Socket	Flash	Gold	12	0.079 "	2 mm	Push-Pull	Gold	All	2 A	Through Hole	UL94 V-0	4.4 mm	0.173 in	2.4 mm	0.094 in
Sullins Connector Solutions PPPN121FGGN	Flash	Polyester	Phosphor Bronze	Square	Solder	Black		1	-40 C	105 ░C	Header			Female Socket	Flash	Gold	12	0.079 "	2 mm	Push-Pull	Gold	All	2 A	Right Angle Through Hole	UL94 V-0					0.122 in	3.1 mm
