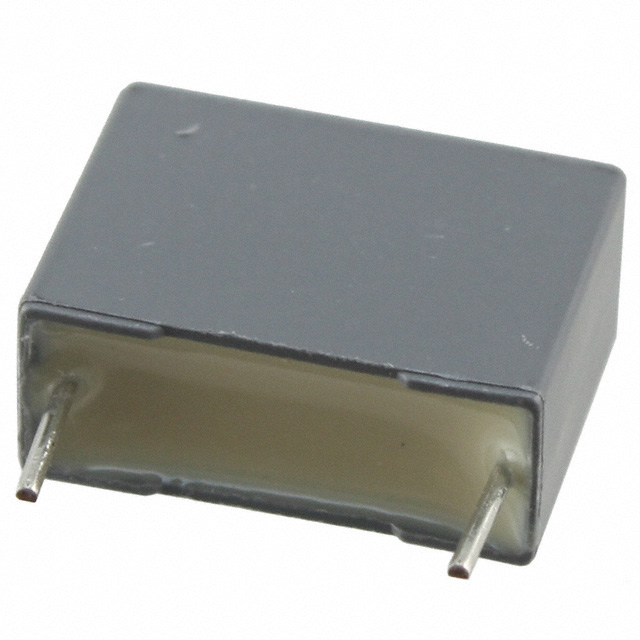

R75QN Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.1 ΜF, ± 5%, HIGH FREQUENCY

Part	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Dielectric Material	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Applications	Termination	Ratings	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - AC	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
KEMET R75QN31004000J	-55 C	105 ░C	16.1 mm	0.634 "	1 kV	1 kVDC	Polypropylene (PP) Metallized	Through Hole	7 mm	26.5 mm	0.276 in	1.043 in	100000 pF	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	AEC-Q200	Radial	0.886 in	22.5 mm	250 V	5 %
KEMET R75QN33305000J	-55 C	105 ░C			1 kV	1 kVDC	Polypropylene (PP) Metallized	Through Hole	13 mm	26.5 mm	0.512 "	1.043 in	0.33 µF	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	AEC-Q200	Radial	0.886 in	22.5 mm	250 V	5 %	0.87 in	22.1 mm	9.6 mOhms
KEMET R75QN310050H0J	-55 C	125 °C	16.1 mm	0.634 "	1 kV	1 kVDC	Polypropylene (PP) Metallized	Through Hole	7 mm	26.5 mm	0.276 in	1.043 in	100000 pF	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	AEC-Q200	Radial	0.886 in	22.5 mm	250 V	5 %			27.1 mOhms
KEMET R75QN315050H0J	-55 C	125 °C			1 kV	1 kVDC	Polypropylene (PP) Metallized	Through Hole	10 mm	26.5 mm	0.394 in	1.043 in	0.15 ÁF	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	AEC-Q200	Radial	0.886 in	22.5 mm	250 V	5 %		0.732 in	18 mOhms	18.6 mm
KEMET R75QN35605000J	-55 C	105 ░C		1.165 in	1 kV	1 kVDC	Polypropylene (PP) Metallized	Through Hole	14.5 mm	26.5 mm	0.571 "	1.043 in	560 nF	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	AEC-Q200	Radial	0.886 in	22.5 mm	250 V	5 %			11.4 mOhms		29.6 mm
KEMET R75QN3150AA00K	-55 C	105 ░C			1 kV	1 kVDC	Polypropylene (PP) Metallized	Through Hole	10 mm	26.5 mm	0.394 in	1.043 in	0.15 ÁF	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	AEC-Q200	Radial	0.886 in	22.5 mm	250 V	10 %		0.732 in	18 mOhms	18.6 mm
