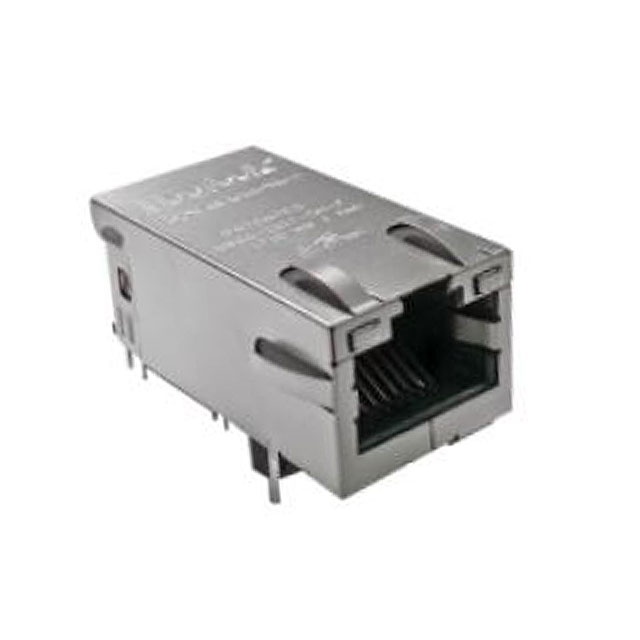

2250056 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS MAGJACK 1PORT TU POE 10/100BT LED
| Part | Orientation | Number of Rows | Termination | Height Above Board [z] | Height Above Board [z] | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | LED Color | Connector Type | Shield Material | Applications | Features | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Shielding | Tab Direction | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 90 ° | 1 | Solder | 0.539 in | 13.69 mm | Phosphor Bronze | Through Hole | 50 µin | 1.27 µm | Green - Green | RJ45 | Brass | 10/100 Base-TX AutoMDIX Power over Ethernet (PoE) | Board Lock | 1 | 85 °C | -40 C | Thermoplastic | EMI Finger Shielded | Up | Gold |
Bel Fuse Inc. | 90 ° | 1 | Solder | 0.539 in | 13.69 mm | Phosphor Bronze | Through Hole | 50 µin | 1.27 µm | Green - Green | RJ45 | Brass | 10/100 Base-TX AutoMDIX Power over Ethernet (PoE) | Board Lock | 1 | 85 °C | -40 C | Thermoplastic | EMI Finger Shielded | Up | Gold |
