087898 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 3POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Applications	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Termination	Style	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Shape	Contact Finish - Mating	Number of Rows	Mounting Type	Connector Type	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Length - Mating [x]	Voltage Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post

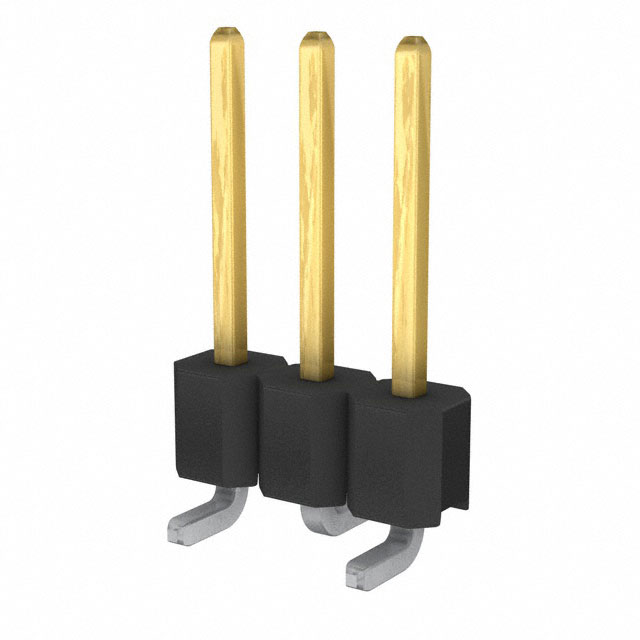

Molex 0878980364	2 çm	78.7 çin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Tin	15 µin	0.38 µm	Unshrouded	Male Pin	Solder	Board to Board Cable	8.13 mm	0.32 in	UL94 V-0	All	Square	Gold	1	Surface Mount	Breakaway Header	0.098 in	2.5 mm
Molex 0878980626	2.54 µm	100 µin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Tin	100 çin	2.54 çm	Unshrouded	Male Pin	Solder	Board to Board Cable	5.84 mm		UL94 V-0	All	Square		1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	6	0.23 in
Molex 0878980557			Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Nylon Polyamide (PA)				Unshrouded	Male Pin	Solder	Board to Board Cable	5.84 mm		UL94 V-0	All	Square		1	Surface Mount	Breakaway Header	0.098 in	2.5 mm		0.23 in
Molex 0878980467	2.54 µm	100 µin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm		Glass Filled Nylon Polyamide (PA)	Tin	100 çin	2.54 çm	Unshrouded	Male Pin	Solder	Board to Cable/Wire	8.13 mm	0.32 in	UL94 V-0	All	Square		1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	4		250 VDC	3 A	105 ░C	-55 °C	Pick and Place
Molex 0878980855	2 çm	78.7 çin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Tin	30 Áin	0.76 Ám	Unshrouded	Male Pin	Solder	Board to Board Cable	5.84 mm		UL94 V-0	All	Square	Gold	1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	8	0.23 in					Pick and Place
Molex 0878980368	2.54 µm	100 µin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Tin	100 çin	2.54 çm	Unshrouded	Male Pin	Solder	Board to Board Cable	8.13 mm	0.32 in	UL94 V-0	All	Square		1	Surface Mount	Breakaway Header	0.098 in	2.5 mm							Pick and Place
Molex 0878981851			Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Gold			Unshrouded	Male Pin	Solder	Board to Board Cable	5.84 mm		UL94 V-0	All	Square	Gold	1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	18	0.23 in					Pick and Place	Flash	Flash
Molex 0878980468	98.4 µin		Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm		Glass Filled Nylon Polyamide (PA)	Tin	98.4 µin	2.5 µm	Unshrouded	Male Pin	Solder	Board to Board Cable	8.13 mm	0.32 in	UL94 V-0	All	Square		1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	4		250 VDC	3 A	105 ░C	-55 °C	Pick and Place			2.5 µm
Molex 0878981826	2.54 µm	100 µin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Tin	100 çin	2.54 çm	Unshrouded	Male Pin	Solder	Board to Board Cable	5.84 mm		UL94 V-0	All	Square		1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	18	0.23 in

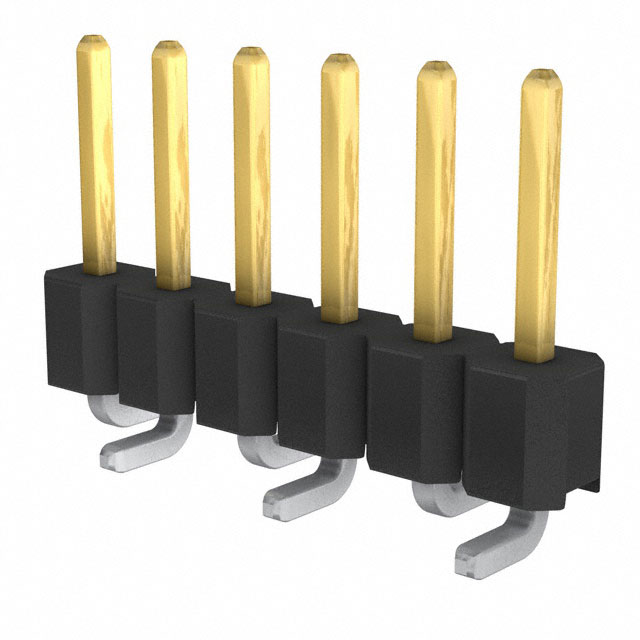

Molex 0878980624	2 çm	78.7 çin	Black	Copper Alloy	Push-Pull	0.1 in	2.54 mm	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Nylon Polyamide (PA)	Tin	15 µin	0.38 µm	Unshrouded	Male Pin	Solder	Board to Board Cable	5.84 mm		UL94 V-0	All	Square	Gold	1	Surface Mount	Breakaway Header	0.098 in	2.5 mm	6	0.23 in
