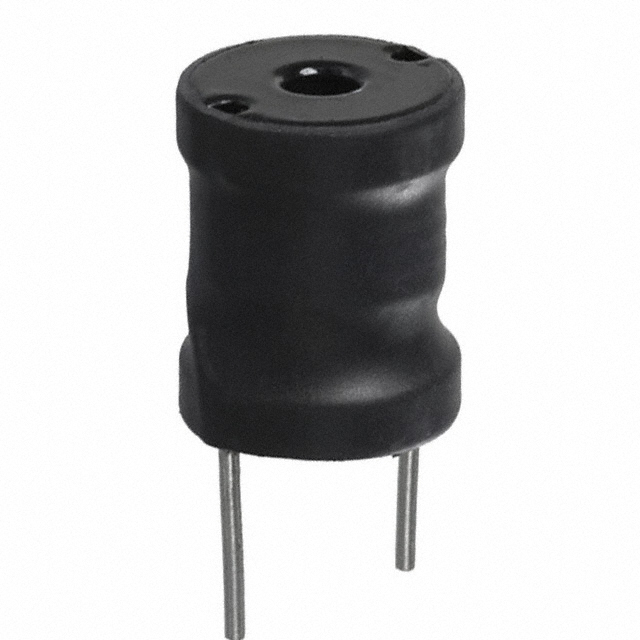

1110 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 18UH 7.2A 16 MOHM TH
| Part | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension | Inductance | Tolerance | Inductance Frequency - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Material - Core | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Mounting Type | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 7.2 A | 0.66 in | 16.76 mm | 18 µH | 10 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial | -55 C | 105 ░C | Unshielded | Through Hole | 16 mOhm | |
Bourns Inc. | 9 A | 0.66 in | 16.76 mm | 1.2 µH | 20 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial | -55 C | 105 ░C | Unshielded | Through Hole | 3 mOhm | |
Bourns Inc. | 9 A | 0.66 in | 16.76 mm | 8.2 µH | 20 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial | -55 C | 105 ░C | Unshielded | Through Hole | 9 mOhm | |
Bourns Inc. | 4.5 A | 0.66 in | 16.76 mm | 27 µH | 10 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial | -55 C | 105 ░C | Unshielded | Through Hole | 30 mOhm | |
Bourns Inc. | 9 A | 0.66 in | 16.76 mm | 10 µH | 10 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial Vertical Cylinder | -55 C | 105 ░C | Unshielded | Through Hole | 10 mOhm | |
Bourns Inc. | 9 A | 0.66 in | 16.76 mm | 1 µH | 20 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial | -55 C | 105 ░C | Unshielded | Through Hole | 3 mOhm | |
Bourns Inc. | 1.6 A | 0.66 in | 16.76 mm | 150 µH | 10 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial Vertical Cylinder | -55 C | 105 ░C | Unshielded | Through Hole | 181 mOhm | |
 Bourns Inc. | 9 A | 0.66 in | 16.76 mm | 1.5 µH | 20 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial | -55 C | 105 ░C | Unshielded | Through Hole | 4 mOhm | |
Bourns Inc. | 1.6 A | 0.66 in | 16.76 mm | 220 µH | 10 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial Vertical Cylinder | -55 C | 105 ░C | Unshielded | Through Hole | 240 mOhm | |
Bourns Inc. | 1.6 A | 0.66 in | 16.76 mm | 270 µH | 10 % | 1 kHz | 0.84 in | 21.34 mm | Ferrite | Drum Core Wirewound | Radial Vertical Cylinder | -55 C | 105 ░C | Unshielded | Through Hole | 300 mOhm |
