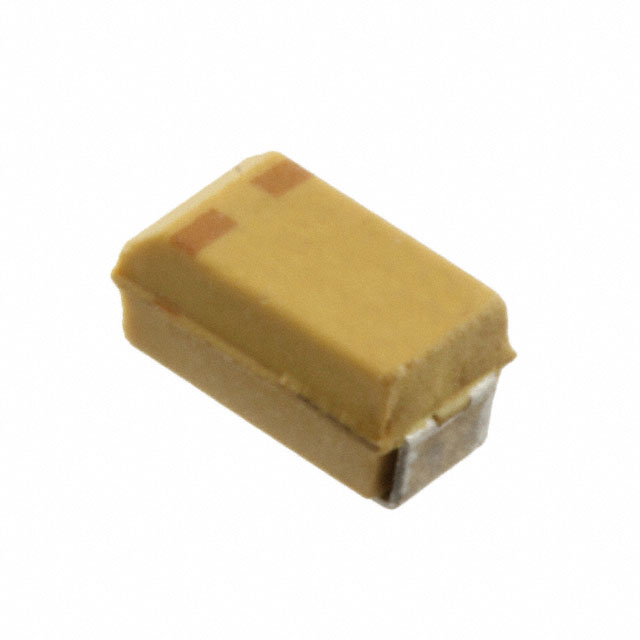

T490A Series
Manufacturer: KEMET
Beta
⌘K
CAP TANT 47UF 20% 10V 1206
| Part | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Capacitance | Features | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Package / Case | Manufacturer Size Code | ESR (Equivalent Series Resistance) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 10 V | -55 C | 125 °C | 1.8 mm | 0.071 in | 1000 Hrs | 47 µF | General Purpose | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 20 % | 1206 (3216 Metric) | A | 1.2 Ohm | Surface Mount |
KEMET | 10 V | -55 C | 125 °C | 1.8 mm | 0.071 in | 1000 Hrs | 47 µF | General Purpose | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 20 % | 1206 (3216 Metric) | A | 1 Ohm | Surface Mount |
KEMET | 4 V | -55 C | 125 °C | 1.8 mm | 0.071 in | 1000 Hrs | 100 µF | General Purpose | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 20 % | 1206 (3216 Metric) | A | 500 mOhms | Surface Mount |
 KEMET | 6 VDC | -55 C | 125 °C | 1.8 mm | 0.071 in | 1000 Hrs | 100 µF | General Purpose | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 20 % | 1206 (3216 Metric) | A | Surface Mount | |
KEMET | 6 VDC | -55 C | 125 °C | 1.8 mm | 0.071 in | 1000 Hrs | 100 µF | General Purpose | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 20 % | 1206 (3216 Metric) | A | 500 mOhm | Surface Mount |
