VM3SC Series

Catalog

SWITCH LIMIT SPDT 10A 125V

Part	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Actuator Type	Circuit	Switch Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Differential Travel	Differential Travel	Ingress Protection	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Operating Position	Operating Position	Operating Force	Electrical Life	Current Rating (Amps)	Release Force	Differential Travel
CIT Relay and Switch VM3SCGF1803L00	0.031 "	0.8 mm	0.063 in	1.6 mm	Round (Pin Plunger)	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Wire Leads	0.031 in	0.8 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.581 in	14.75 mm	180 gf	50000 Cycles	6 A 10 A

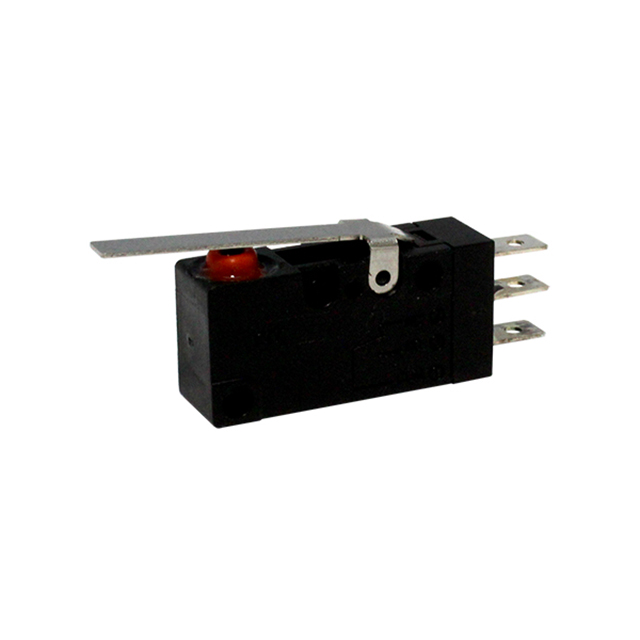

CIT Relay and Switch VM3SCGF3002L03	0.039 "	1 mm	0.138 in	3.5 mm	Lever Straight	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Quick Connect	0.06 in	1.5 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.587 in	14.9 mm	180 gf	50000 Cycles	6 A 10 A	80 gf
CIT Relay and Switch VM3SCGF3003L01	0.031 "	0.8 mm	0.118 in	3 mm	Lever Roller	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Wire Leads		0.05 in	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.795 in	20.2 mm	210 gf	50000 Cycles	6 A 10 A		1.3 mm

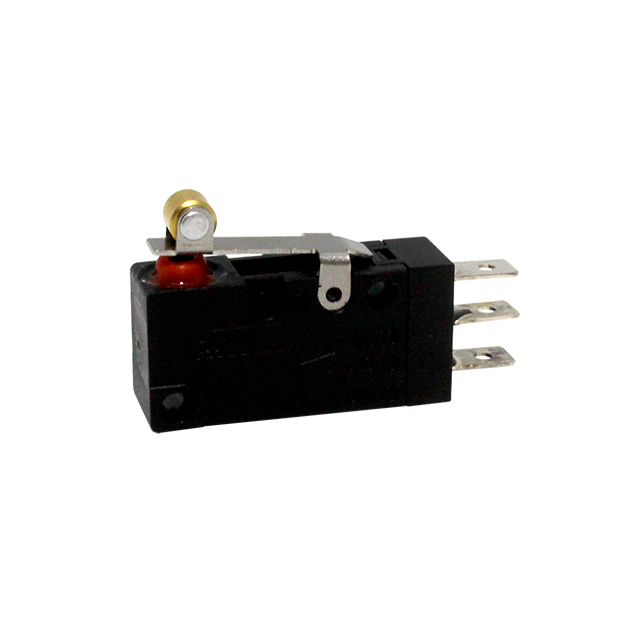

CIT Relay and Switch VM3SCGF3002L06	0.012 "	0.3 mm	0.067 in	1.7 mm	Lever Roller	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Quick Connect	0.04 in	1 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.799 in	20.3 mm	380 gf	50000 Cycles	6 A 10 A	160 gf

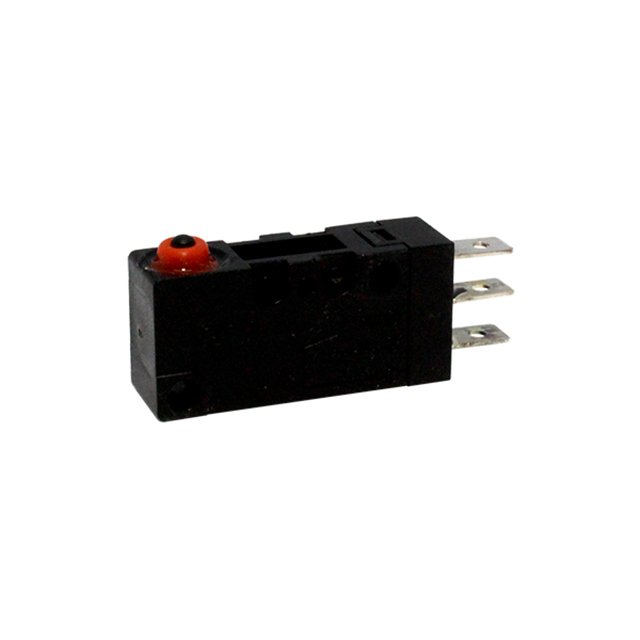

CIT Relay and Switch VM3SCQF3002L00	0.024 "	0.6 mm	0.08 in	2 mm	Round (Pin Plunger)	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Quick Connect	0.031 in	0.8 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.581 in	14.75 mm	320 gf	50000 Cycles	6 A 10 A	250 gf

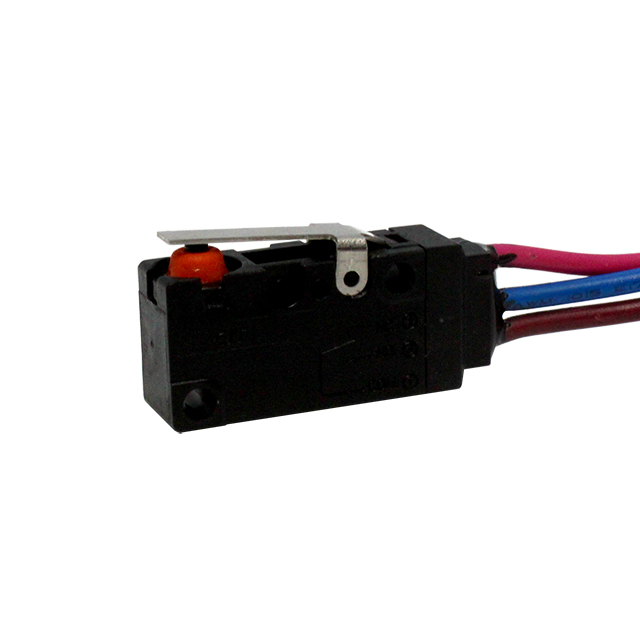

CIT Relay and Switch VM3SCQF1803L04	0.02 "	0.5 mm	0.071 "	1.8 mm	Lever Straight	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Wire Leads	0.04 in	1 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.602 in	15.3 mm	190 gf	50000 Cycles	6 A 10 A	80 gf

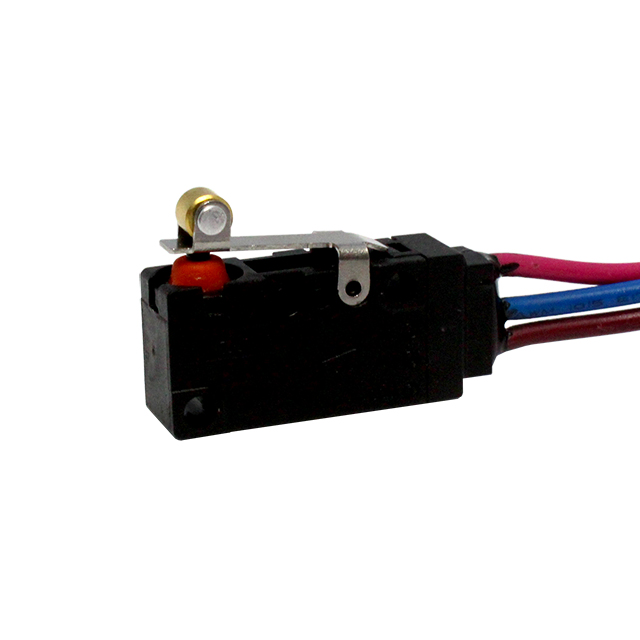

CIT Relay and Switch VM3SCGF3003L06	0.012 "	0.3 mm	0.067 in	1.7 mm	Lever Roller	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Wire Leads	0.04 in	1 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.799 in	20.3 mm	380 gf	50000 Cycles	6 A 10 A	160 gf
CIT Relay and Switch VM3SCQF1803L01	0.039 "	1 mm	0.1 in	2.5 mm	Lever Roller	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Wire Leads		0.05 in	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.807 in	20.5 mm	140 gf	50000 Cycles	6 A 10 A	50 gf	1.3 mm

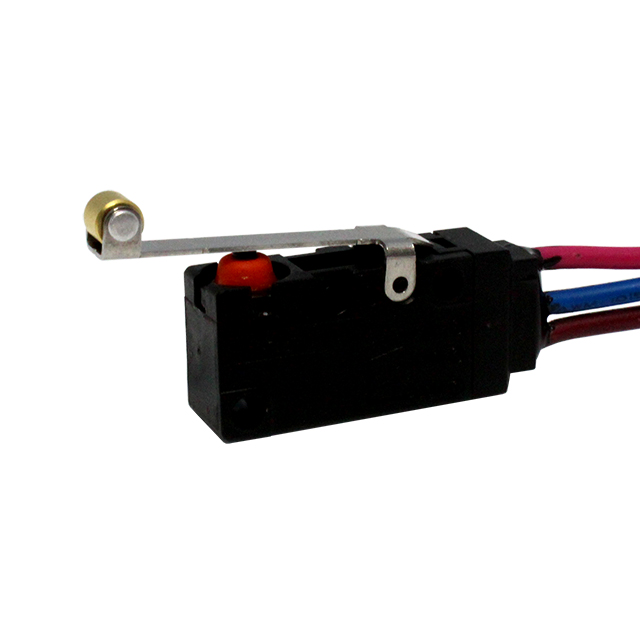

CIT Relay and Switch VM3SCGF1803L01	0.039 "	1 mm	0.1 in	2.5 mm	Lever Roller	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Wire Leads		0.05 in	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.807 in	20.5 mm	140 gf	50000 Cycles	6 A 10 A	50 gf	1.3 mm

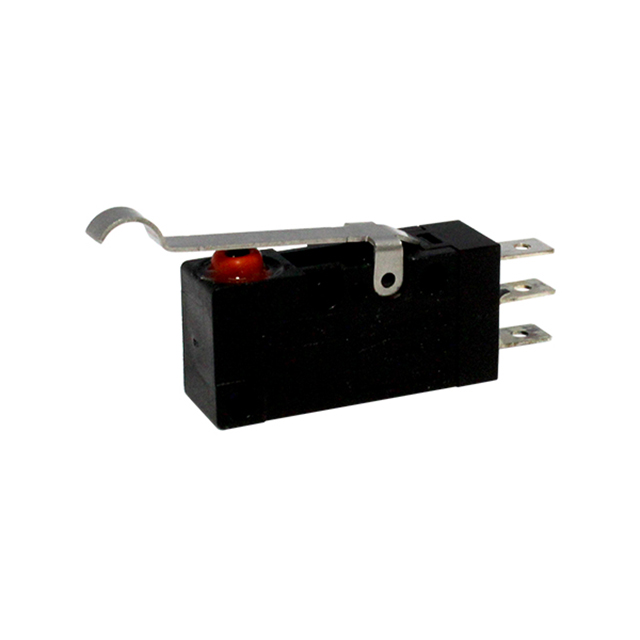

CIT Relay and Switch VM3SCGF3002L02	0.024 "	0.6 mm	0.118 in	3 mm	Lever Simulated Roller	SPDT	On-Mom	Chassis Mount	120 °C	-40 C	Quick Connect	0.06 in	1.5 mm	IP67 - Dust Tight Waterproof	125 V	1000000 Cycles	36 VDC	0.72 in	18.3 mm	0.2 kgf	50000 Cycles	6 A 10 A	180 gf
