1445087 Series

Catalog

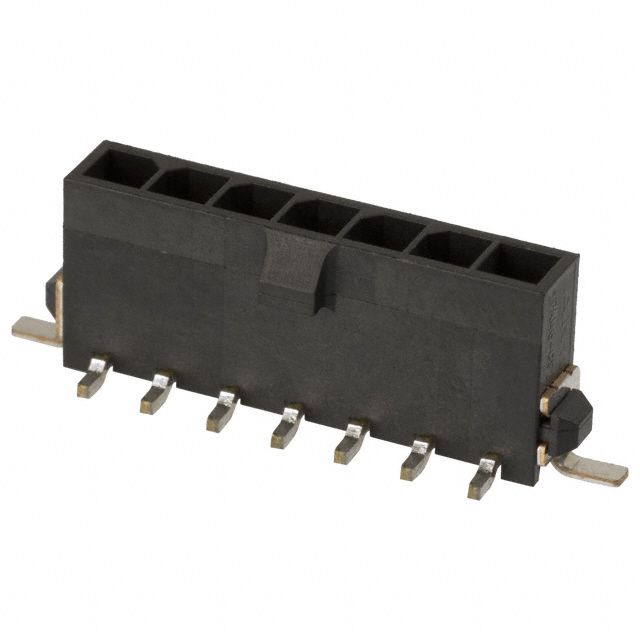

MICRO MNL HDR ASSY S/ROW AU LF

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Shrouding	Number of Rows	Insulation Height [z]	Insulation Height [z]	Connector Type	Voltage Rating	Style	Mounting Type	Insulation Color	Insulation Material	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Contact Type	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Post	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
TE Connectivity AMP Connectors 2-1445087-7	2.54 µm	100 µin	General Purpose	0.38 µm	15 µin	Locking Ramp	Pick and Place Solder Retention	3 mm	0.118 in	Shrouded - 4 Wall	1	9.25 mm	0.364 in	Header	250 V	Board to Cable/Wire	Surface Mount	Black	Nylon Polyamide (PA)	Gold	All	7	Male Pin	UL94 V-0	Varies by Wire Gauge	Tin	Solder	Square	-40 C	105 ░C	Brass
