GBC34D Series

Catalog

CONN HEADER SMD 68POS 2.54MM

Part	Number of Positions	Termination	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Mounting Type	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Shrouding	Contact Finish - Mating	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Length - Mating
Sullins Connector Solutions GBC34DFBN-M30	68	Solder	Board to Board Cable	0.318 "	8.08 mm	Nylon 9T Polyamide (PA9T)	2	2.54 µm	100 µin	2.54 mm	0.1 in	0.1 in	2.54 mm	Surface Mount	Phosphor Bronze	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	Gold	Square	UL94 V-0	3 A	Push-Pull	10 çin	0.25 çm	Breakaway Header	Tin	-65 ░C	150 °C	All

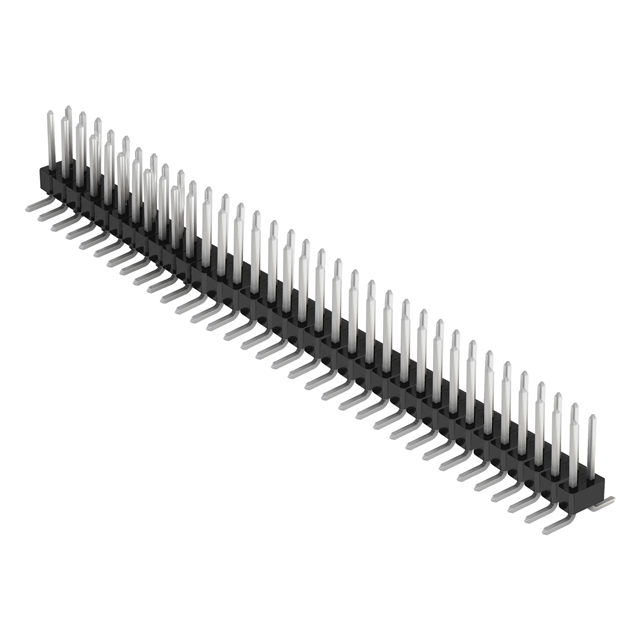

Sullins Connector Solutions GBC34DABN-M30	68	Solder	Board to Board Cable	0.23 in		Nylon 9T Polyamide (PA9T)	2	2.54 µm	100 µin	2.54 mm	0.1 in	0.1 in	2.54 mm	Surface Mount	Phosphor Bronze	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	Gold	Square	UL94 V-0	3 A	Push-Pull	10 çin	0.25 çm	Breakaway Header	Tin	-65 ░C	150 °C	All	5.84 mm
