AFB1512 Series

Catalog

FAN AXIAL 172X25.4MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	RPM	Approval Agency	Air Flow	Air Flow	Ingress Protection	Bearing Type	Noise	Voltage - Rated	Width [y]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Power (Watts)	Static Pressure	Features

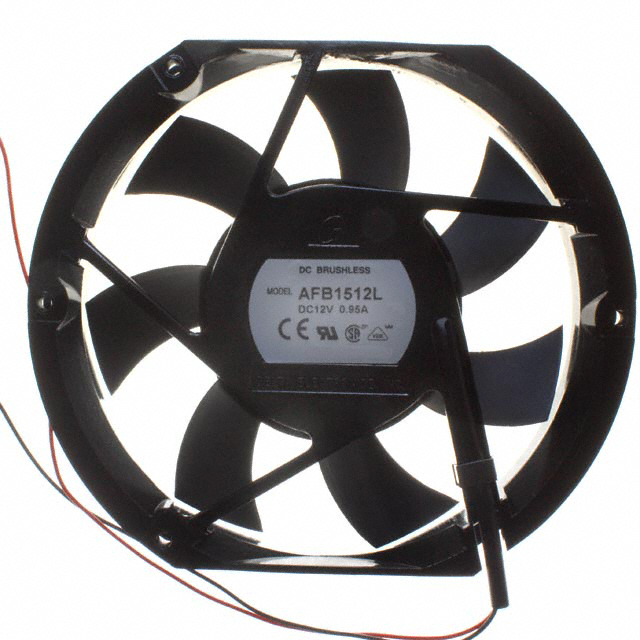

Delta Electronics AFB1512L-TA50	Aluminum	0.56 A	80000 Hrs	Plastic	6 VDC	14 V	Tubeaxial	70 °C	-10 °C	2 Wire Leads	2400 RPM	CE CSA UL VDE	4.5 m³/min	160.8 CFM	IP55 - Dust Protected Water Resistant	Ball	46 dB(A)	12 VDC	25.4 mm	Rectangular/Rounded	150 mm	172 mm	430.01 g	0.948 lb	75.9 Pa	0.305 in H2O	6.72 W
Delta Electronics AFB1512H-AF00	Aluminum	0.98 A	80000 Hrs	Plastic	6 VDC	14 V	Tubeaxial	70 °C	-10 °C	3 Wire Leads	3000 RPM	CE CSA UL VDE	5.67 m³/min	202.5 CFM		Ball	52 dB	12 VDC	25.4 mm	Rectangular/Rounded	150 mm	172 mm	430.01 g	0.948 lb		116.3 Pa	11.76 W	0.467 in H2O	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB1512HH-AF00	Aluminum	1.17 A	80000 Hrs	Plastic	6 VDC	14 V	Tubeaxial	70 °C	-10 °C	3 Wire Leads	3200 RPM	CE CSA UL VDE	6.02 m³/min	214.9 CFM		Ball	54.5 dB	12 VDC	25.4 mm	Rectangular/Rounded	150 mm	172 mm	430.01 g	0.948 lb		130.5 Pa	14.16 W	0.524 in H2O	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB1512H-A	Aluminum	0.98 A	80000 Hrs	Plastic	6 VDC	14 V	Tubeaxial	70 °C	-10 °C	2 Wire Leads	3000 RPM	CE CSA UL VDE	5.67 m³/min	202.5 CFM		Ball	52 dB	12 VDC	25.4 mm	Rectangular/Rounded	150 mm	172 mm	430.01 g	0.948 lb		116.3 Pa	11.76 W	0.467 in H2O
Delta Electronics AFB1512L-A	Aluminum	0.56 A	80000 Hrs	Plastic	6 VDC	14 V	Tubeaxial	70 °C	-10 °C	2 Wire Leads	2400 RPM	CE CSA UL VDE	4.5 m³/min	160.8 CFM		Ball	46 dB(A)	12 VDC	25.4 mm	Rectangular/Rounded	150 mm	172 mm	430.01 g	0.948 lb	75.9 Pa	0.305 in H2O	6.72 W
