882215 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

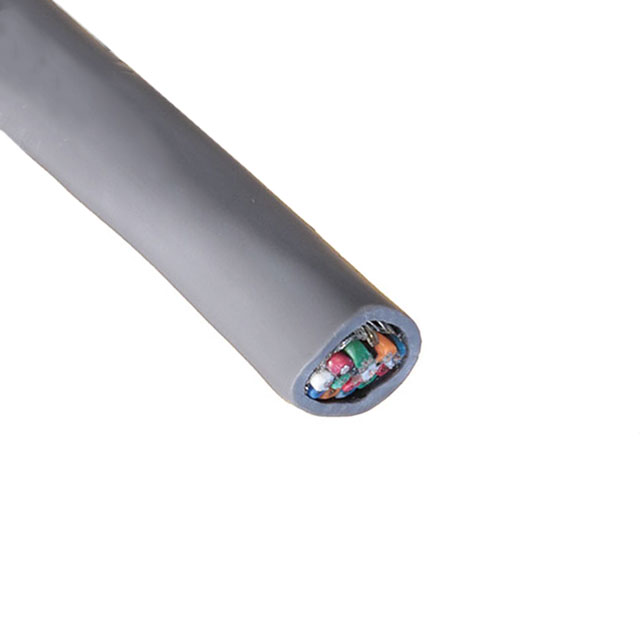

CABLE 15COND 22AWG SLATE
| Part | Jacket Color | Number of Conductors | Length | Length | Cable Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | 15 | 304.8 m | 1000 ft | Multi-Conductor | 300 VDC | 0.294 in | 7.47 mm | 22 AWG | Copper Tinned | UL Style 2464 | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 |
ALPHA WIRE | Slate | 15 | 152.4 m | 500 ft | Multi-Conductor | 300 VDC | 0.294 in | 7.47 mm | 22 AWG | Copper Tinned | UL Style 2464 | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 |
