G52LAC-P Series

Manufacturer: ODU

Catalog

ODU MINI-SNAP RECEPT, STY 5, SZ

Part	Connector Type	Shell Material	Features	Applications	Orientation	Shell Finish	Shell Size - Insert [custom]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Mounting Feature	Ingress Protection	Shielding	Color	Termination	Current Rating (Amps)	Contact Finish - Mating	Fastening Type	Contact Material	Primary Material	Insert Material	Number of Positions
ODU G52LAC-P08QJ00-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	500 V	120 °C	-40 C	Panel Mount Through Hole	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver	Solder	7.5 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	8
ODU G52LAC-P26LCC0-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	300 VDC	120 °C	-40 C	Panel Mount	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver		4 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	26
ODU G52LAC-P14QF00-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	400 V	120 °C	-40 C	Panel Mount Through Hole	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver	Solder	6 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	14
ODU G52LAC-P03MSN0-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	800 V	120 °C	-40 C	Panel Mount	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver		16 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)
ODU G52LAC-P16QF00-A000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	366 V	120 °C	-40 C	Panel Mount Through Hole	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver	Solder	6 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	16

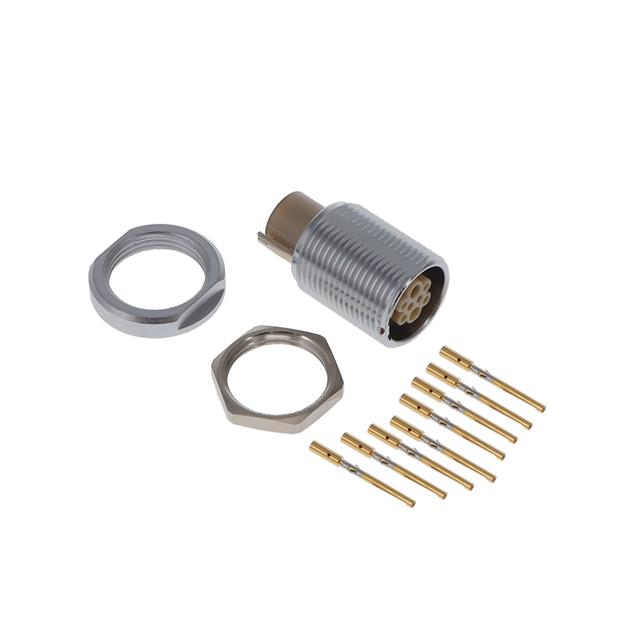

ODU G52LAC-P08NMM2-000L	Receptacle Female Sockets	Brass	Medical (IEC 60601 (2 MOOP/2 MOPP))	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	48 VDC	120 °C	-40 C	Panel Mount	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Shielded	Silver	Crimp	10 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	8
ODU G52LAC-P03LSN0-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	800 V	120 °C	-40 C	Panel Mount	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver		16 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)

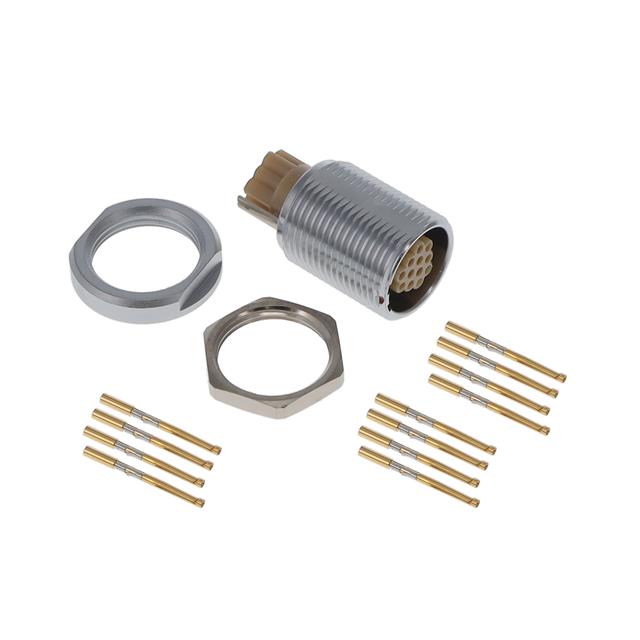

ODU G52LAC-P12NFG2-000L	Receptacle Female Sockets	Brass	Medical (IEC 60601 (2 MOOP/2 MOPP))	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	48 VDC	120 °C	-40 C	Panel Mount	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Shielded	Silver	Crimp	7.5 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	12
ODU G52LAC-P02QT00-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	700 VDC	120 °C	-40 C	Panel Mount Through Hole	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver	Solder	18 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	2
ODU G52LAC-P19LFG0-0000	Receptacle Female Sockets	Brass	Ground	Industrial Medical Military Testing Equipment & Measurement	A	Chrome over Nickel	2	300 VDC	120 °C	-40 C	Panel Mount	Bulkhead - Front or Rear Side Nut	IP50 - Dust Protected	Unshielded	Silver		7.5 A	Gold	Push-Pull	Brass	Metal	Polyetheretherketone (PEEK)	19
