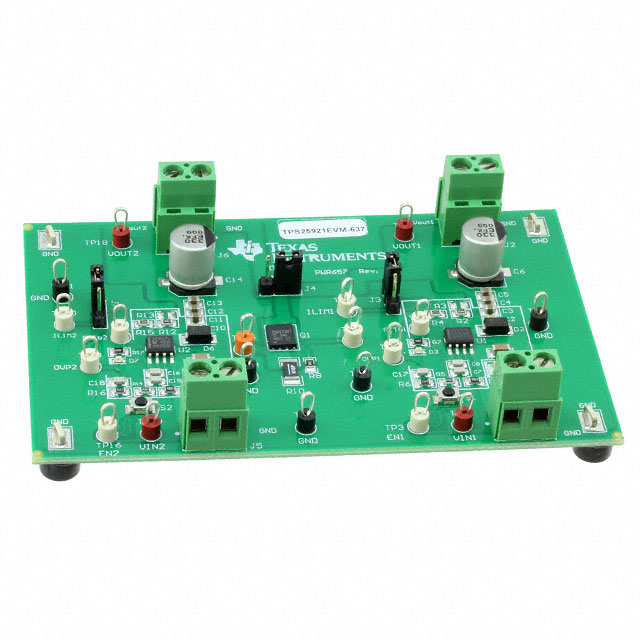

TPS25921L Series
4.5-V to 18-V, 90mΩ, 0.4-1.6A eFuse with latch off fault response
Manufacturer: Texas Instruments
Catalog
4.5-V to 18-V, 90mΩ, 0.4-1.6A eFuse with latch off fault response
Key Features
• 4.5 V – 18 V Operating Voltage, 20 V (Max)90 mΩ RDS(ON)(Typical)0.4 A to 1.6 A Adjustable Current Limit±2% Accurate ILIMITat 1A at 25°C±3% Overvoltage, Undervoltage ThresholdProgrammable dVO/dt ControlFault Output for Thermal Shutdown, UVLO andOVP–40°C to 125°C Junction Temperature RangeAuto-Retry and Latch-Off VersionsUL2367 Recognized - File No. E169910UL60950 - Safe during Single Point Failure Test4.5 V – 18 V Operating Voltage, 20 V (Max)90 mΩ RDS(ON)(Typical)0.4 A to 1.6 A Adjustable Current Limit±2% Accurate ILIMITat 1A at 25°C±3% Overvoltage, Undervoltage ThresholdProgrammable dVO/dt ControlFault Output for Thermal Shutdown, UVLO andOVP–40°C to 125°C Junction Temperature RangeAuto-Retry and Latch-Off VersionsUL2367 Recognized - File No. E169910UL60950 - Safe during Single Point Failure Test
Description
AI
The TPS25921 is a compact, feature rich eFuse with a full suite of protection functions. The wide operating voltage allows control of many popular DC buses. The precise ±2% current limit, at room temperature, provides excellent accuracy making the TPS25921 well suited for many system protection applications.
Load, source and device protection are provided with multiple programmable features including overcurrent, overvoltage and undervoltage. 3% threshold accuracy for UV and OV, ensures tight supervision of bus voltages, eliminating the need for supervisor circuitry. Fault flag output(FLT)is provided for system status monitoring and down stream load control.
For hot-plug-in boards, TPS25921 provides in-rush current control and programmable output ramp-rate. Output ramp rate is programmable using a capacitor at soft-start (SS) pin, for maximum design flexibility.
The TPS25921 is a compact, feature rich eFuse with a full suite of protection functions. The wide operating voltage allows control of many popular DC buses. The precise ±2% current limit, at room temperature, provides excellent accuracy making the TPS25921 well suited for many system protection applications.
Load, source and device protection are provided with multiple programmable features including overcurrent, overvoltage and undervoltage. 3% threshold accuracy for UV and OV, ensures tight supervision of bus voltages, eliminating the need for supervisor circuitry. Fault flag output(FLT)is provided for system status monitoring and down stream load control.
For hot-plug-in boards, TPS25921 provides in-rush current control and programmable output ramp-rate. Output ramp rate is programmable using a capacitor at soft-start (SS) pin, for maximum design flexibility.
