SMP1331 Series
Manufacturer: Skyworks Solutions Inc.
Beta
⌘K
RF DEVELOPMENT TOOLS PIN DIODE 45W EVAL BOARD
| Part | Supplied Contents | For Use With/Related Products | Contents | Frequency [Max] | Frequency [Min] | Type | Utilized IC / Part | Supplier Device Package | Voltage - Peak Reverse (Max) | Power Dissipation (Max) [Max] | Current - Max [Max] | Capacitance @ Vr, F | Resistance @ If, F | Package / Case | Diode Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Skyworks Solutions Inc. | Board(s) | SMP1331-087LF | Board(s) | 6 GHz | 10 MHz | PIN Diode | SMP1331-087LF | ||||||||||

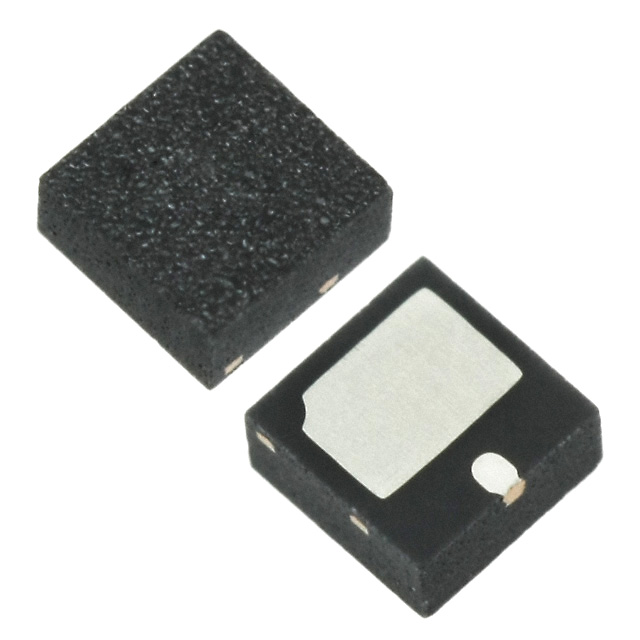

 Skyworks Solutions Inc. | 3-QFN (2x2) | 200 V | 2.5 W | 200 mA | 0.35 pF | 500 mOhm | 2-VDFN Exposed Pad | PIN - Single | -40 °C | 150 °C | |||||||
Skyworks Solutions Inc. | Board(s) | SMP1331-085LF | Board(s) | 6 GHz | 10 MHz | PIN Diode | SMP1331-085LF | ||||||||||
Skyworks Solutions Inc. | Chip | 200 V | 0.16 pF | 1.7 Ohm | Die | PIN - Single | -65 °C | 150 °C | |||||||||

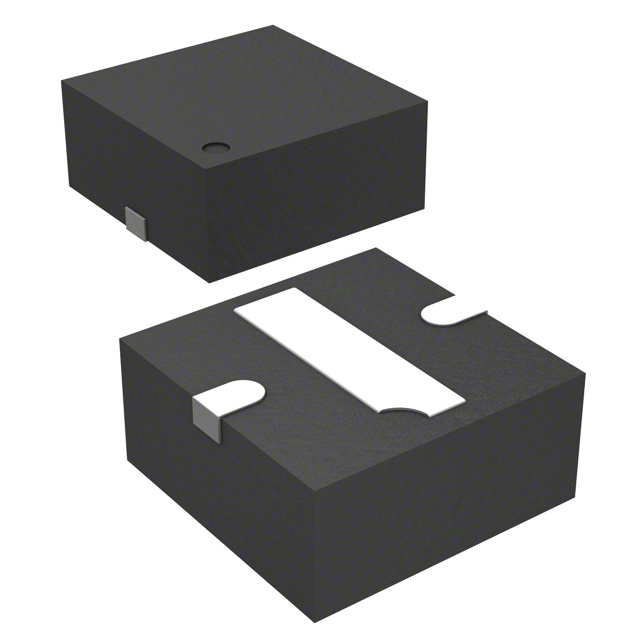

 Skyworks Solutions Inc. | 2-QFN (2x2) | 200 V | 200 mA | 0.35 pF | 500 mOhm | 2-VSFN Exposed Pad | PIN - Single | -55 °C | 175 °C |
