317-052 Series
Manufacturer: EDAC Inc.
Beta
⌘K

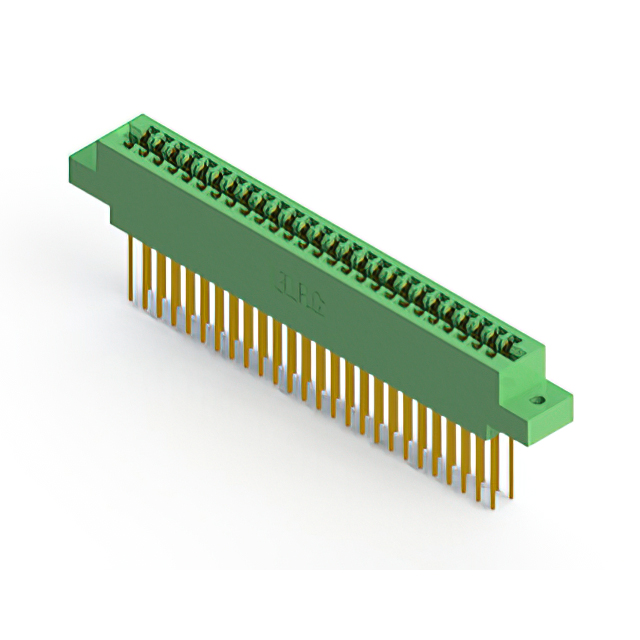

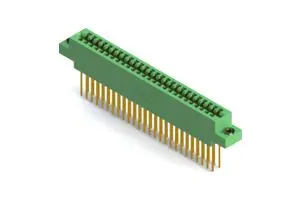

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Card Type | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Color | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Read Out | Gender | Number of Rows [custom] | Number of Positions/Bay/Row | Pitch | Pitch | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Wire Wrap | 52 | 0.25 Ám | 10 Áin | Through Hole | Green | Gold | -65 ░C | 125 °C | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | 2 | 26 | 3.96 mm | 0.156 in | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Wire Wrap | 52 | 0.25 Ám | 10 Áin | Through Hole | Green | Gold | -65 ░C | 125 °C | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | 2 | 26 | 3.96 mm | 0.156 in | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm |
