AWHW2 60 Series

Catalog

CONN HEADER VERT 60POS 2.54MM

Part	Number of Positions	Contact Material	Insulation Height	Insulation Height	Features	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Style	Number of Rows [custom]	Insulation Material	Material Flammability Rating	Contact Finish - Mating	Current Rating (Amps)	Shrouding	Insulation Color	Contact Shape	Termination	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

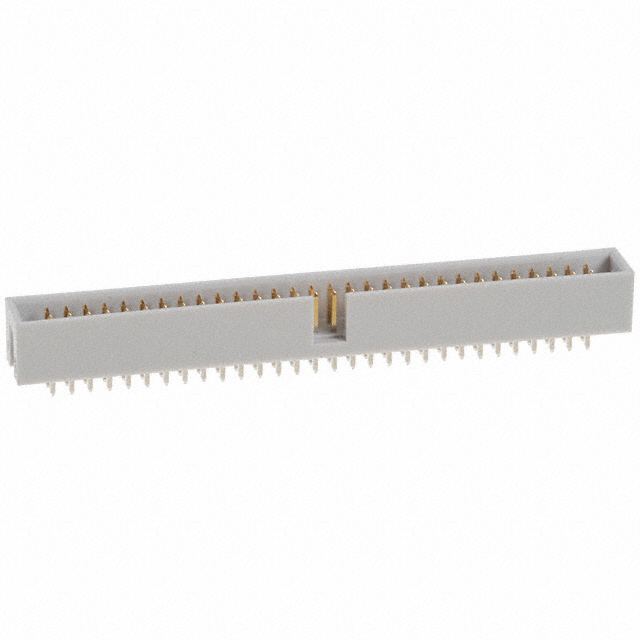

Assmann WSW Components AWHW60G-0202-T-R	60	Brass	0.354 in	9 mm	Keying Slot	0.13 "	3.3 mm	Flash	Board to Cable/Wire	2	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Gold	3 A	Shrouded - 4 Wall	Gray	Square	Solder	Push-Pull	All	0.1 "	2.54 mm	0.224 in	5.7 mm	Male Pin	Tin	0.1 in	2.54 mm	-40 C	105 ░C	Header	Through Hole
Assmann WSW Components AWHW2 60A-0202
Assmann WSW Components AWHW2 60G-0202

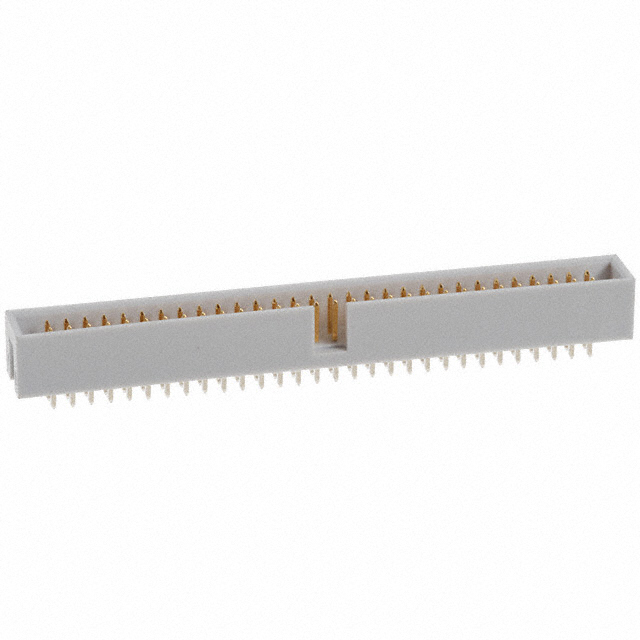

Assmann WSW Components AWHW60G-0102-T-R	60	Brass	0.354 in	9 mm	Keying Slot	0.13 "	3.3 mm		Board to Cable/Wire	2	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Gold	3 A	Shrouded - 4 Wall	Gray	Square	Solder	Push-Pull	All	0.1 "	2.54 mm	0.224 in	5.7 mm	Male Pin	Tin	0.1 in	2.54 mm	-40 C	105 ░C	Header	Through Hole	0.76 Ám	30 Áin
