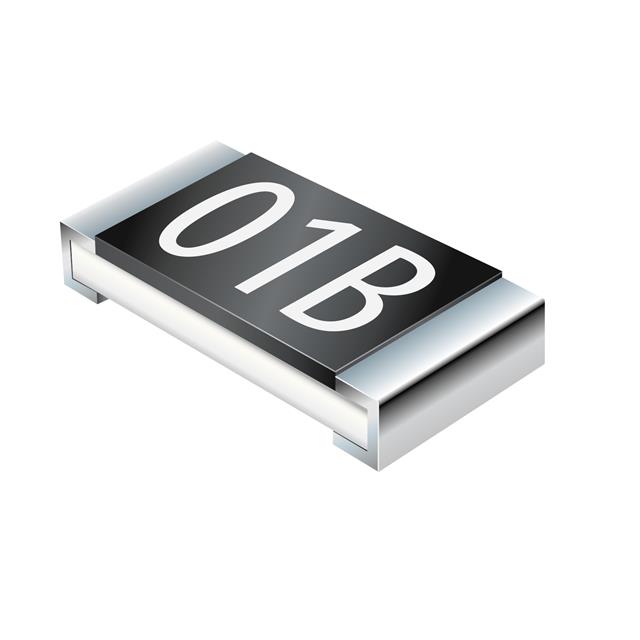

CHP0603Q Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES CHIP 0603 4R7 1% 1/3W TC200
| Part | Ratings | Composition | Resistance | Power (Watts) | Power (Watts) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Terminations [custom] | Tolerance | Temperature Coefficient | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 | Thick Film | 4.7 Ohms | 0.3333333333333333 W | 0.333 W | 0.55 mm | 0.022 in | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 155 C | -55 C | Automotive AEC-Q200 Pulse Withstanding | 2 | 1 % | 200 ppm/°C | 1608 Metric | 0603 |
Bourns Inc. | AEC-Q200 | Thick Film | 22 Ohms | 0.3333333333333333 W | 0.333 W | 0.55 mm | 0.022 in | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 155 C | -55 C | Automotive AEC-Q200 Pulse Withstanding | 2 | 5 % | 200 ppm/°C | 1608 Metric | 0603 |
 Bourns Inc. | AEC-Q200 | Thick Film | 1 Ohms | 0.3333333333333333 W | 0.333 W | 0.55 mm | 0.022 in | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 155 C | -55 C | Automotive AEC-Q200 Pulse Withstanding | 2 | 1 % | 200 ppm/°C | 1608 Metric | 0603 |
Bourns Inc. | AEC-Q200 | Thick Film | 1000 Ohms | 0.3333333333333333 W | 0.333 W | 0.55 mm | 0.022 in | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 155 C | -55 C | Automotive AEC-Q200 Pulse Withstanding | 2 | 1 % | 100 ppm/°C | 1608 Metric | 0603 |
