147727 Series

Catalog

06 MODIV VRT SR OUTRIGGER SN

Part	Connector Type	Insulation Color	Current Rating (Amps)	Number of Rows	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Termination	Style	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Material Flammability Rating
TE Connectivity Raychem Cable Protection 5-147727-5	Receptacle Bottom or Top Entry	Black	2 A	1	Tin	125 °C	-65 ░C	Phosphor Bronze	150 Áin	3.81 Ám	Polyester Glass Filled	Solder	Board to Board Cable	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám	Female Socket	All	6	6.73 mm	0.265 in	Square	UL94 V-0

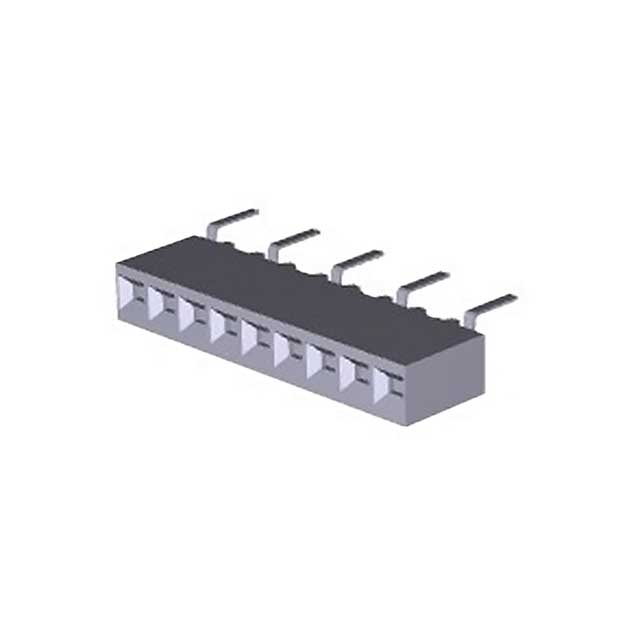

TE Connectivity Raychem Cable Protection 5-147727-8	Receptacle Bottom or Top Entry	Black	2 A	1	Tin	125 °C	-65 ░C	Phosphor Bronze	150 Áin	3.81 Ám	Polyester Glass Filled	Solder	Board to Board Cable	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám	Female Socket	All	9	6.73 mm	0.265 in	Square	UL94 V-0

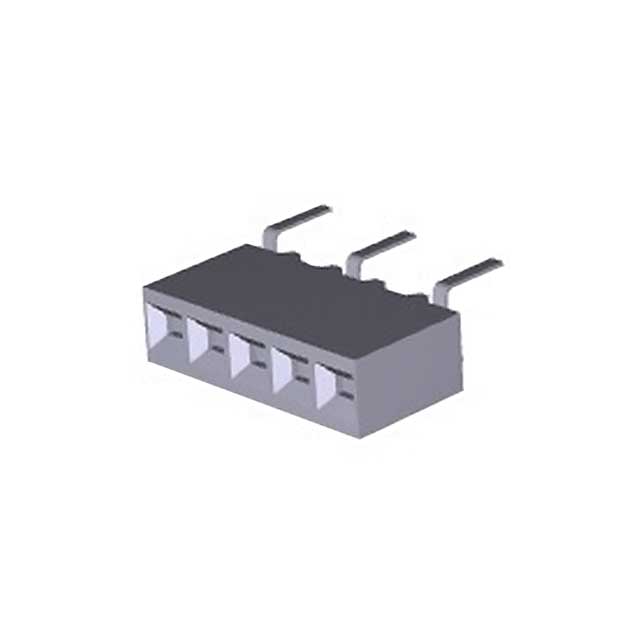

TE Connectivity Raychem Cable Protection 5-147727-4	Receptacle Bottom or Top Entry	Black	2 A	1	Tin	125 °C	-65 ░C	Phosphor Bronze	150 Áin	3.81 Ám	Polyester Glass Filled	Solder	Board to Board Cable	0.1 in	2.54 mm	Through Hole	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám	Female Socket	All		6.73 mm	0.265 in	Square	UL94 V-0
