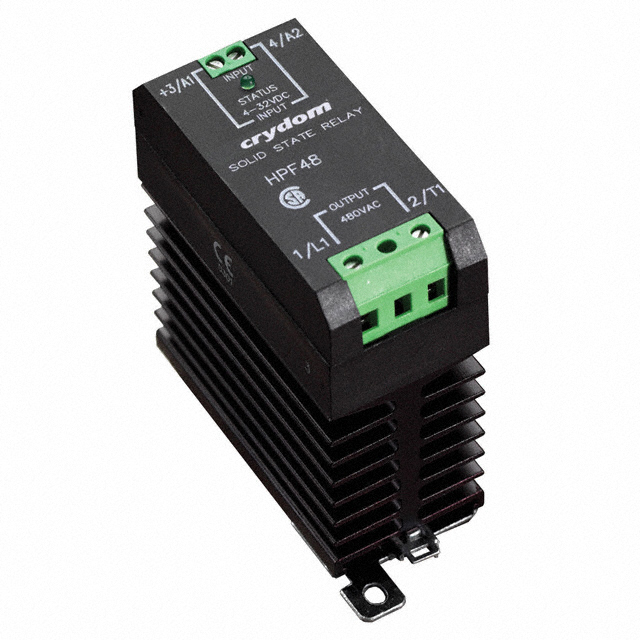

HPF480 Series

Catalog

SSR RELAY SPST-NO 30A 48-660V

Part	Load Current	Package / Case	Output Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
Sensata-Crydom HPF480D30	30 A	Module	AC Zero Cross	4.5 V	32 VDC	DIN Rail	660 V	48 V	Screw Terminal	80 °C	-40 C
Sensata-Crydom HPF480D30R	30 A	Module	AC	4.5 V	32 VDC	DIN Rail	660 V	48 V	Screw Terminal	80 °C	-40 C
Sensata-Crydom HPF480D20	30 A	Module	AC Zero Cross	4.5 V	32 VDC	DIN Rail	660 V	48 V	Screw Terminal	80 °C	-40 C
