PTVS1 Series

Catalog

TVS DIODE 43VWM 56VC 2DFN

Part	Package / Case	Type	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs) [Min]	Current - Peak Pulse (10/1000µs) [Max]	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Applications	Voltage - Clamping (Max) @ Ipp	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case [custom]
Bourns Inc. PTVS1-043C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	48 V	43 V	1000 pF	General Purpose	56 V
Bourns Inc. PTVS1-086C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	96 V	86 V		General Purpose

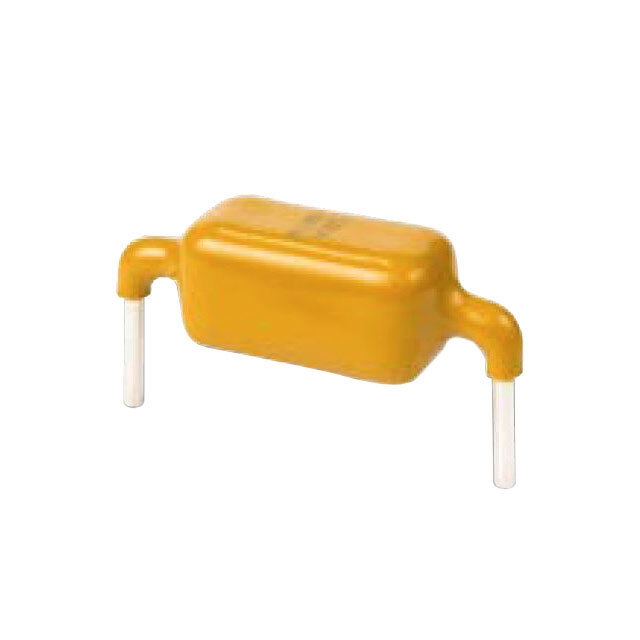

Bourns Inc. PTVS1-380C-TH	Axial Right Angle Bend	Zener	Axial	Through Hole	125 °C	-55 ░C	1	1000 A	1 kA	8 µs	20 µs	401 V	380 V	120 pF	General Purpose		520 V	24.15 mm
Bourns Inc. PTVS1-240C-M	2-SMD Flat Leads	Zener		Surface Mount	125 °C	-55 ░C	1	100 A				266 V		950 pF	General Purpose	295 V
Bourns Inc. PTVS1-022C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	24 V	22 V	2000 pF	General Purpose		28 V
Bourns Inc. PTVS1-026C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	28 V	26 V	1500 pF	General Purpose	30 V
Bourns Inc. PTVS1-029C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	32 V	29 V	1500 pF	General Purpose	34 V
Bourns Inc. PTVS1-058C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	64 V	58 V		General Purpose	67 V
Bourns Inc. PTVS1-066C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	72 V	66 V		General Purpose
Bourns Inc. PTVS1-076C-H	2-SMD No Lead	Zener	2-DFN (8x6)	Surface Mount	125 °C	-55 °C	1	1000 A	1 kA	8 µs	20 µs	85 V	76 V		General Purpose	91 V
