GMSTBA Series
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Through Hole Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Through Hole Header
Beta
⌘K
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Through Hole Header
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Through Hole Header
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Through Hole Header
| Part | Contact Mating Finish | Mounting Type | Header Orientation | Number of Positions | Termination Style | Type | Color | Number of Levels | Voltage - IEC | Current - IEC | Positions Per Level | Pitch | Pitch | Material Flammability Rating | Contact Tail Length | Contact Tail Length | Insulation Height | Insulation Height | Housing Material | Voltage - UL | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Gold | Through Hole | 90° Right Angle | 6 | Solder | Header Male Pins Shrouded (4 Side) | Green | 1 | 400 V | 12 A | 6 | 0.3 in | 7.62 mm | ||||||||

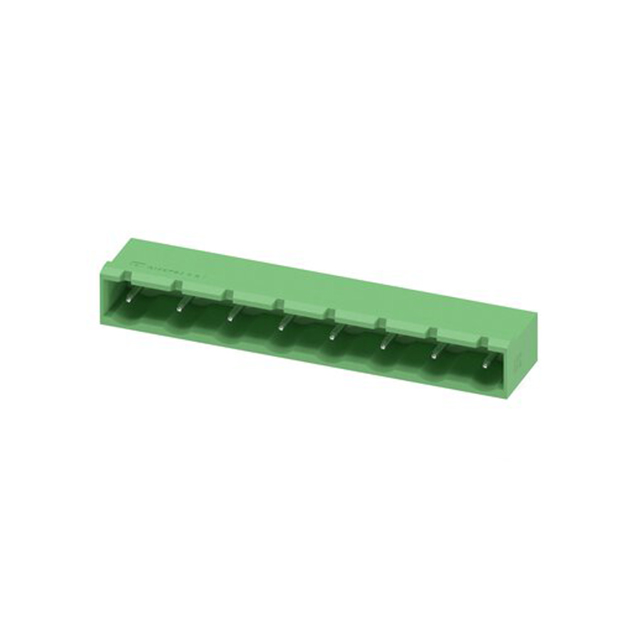

 Phoenix Contact | Tin | Through Hole | 90° Right Angle | 8 | Solder | Header Male Pins Shrouded (4 Side) | Green | 1 | 1 kV | 16 A | 8 | 0.3 in | 7.62 mm | UL94 V-0 | 0.138 in | 3.5 mm | 8.61 mm | 0.339 " | Polyamide (PA) Nylon | 300 V | 18.5 A |
