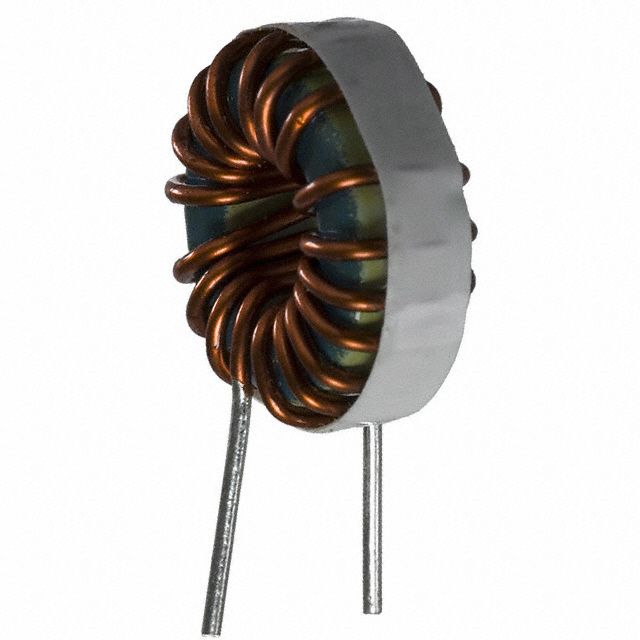

2109 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 47UH 3.6A 55 MOHM TH
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Type | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | DC Resistance (DCR) [Max] | Shielding | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Mounting Type | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | -55 C | 105 ░C | 15 % | Toroidal | 3.6 A | 0.86 in | 21.84 mm | Radial Horizontal (Open) | 55 mOhm | Unshielded | 47 µH | 0.45 " | 11.43 mm | 1 kHz | Through Hole | |
Bourns Inc. | -55 C | 105 ░C | 15 % | Toroidal | 3.6 A | 0.86 in | 21.84 mm | Radial Horizontal (Open) | 55 mOhm | Unshielded | 47 µH | 0.45 " | 11.43 mm | 1 kHz | Through Hole | |
 Bourns Inc. | -55 C | 105 ░C | 15 % | Toroidal | 3.6 A | 0.86 in | Radial Vertical (Open) | 55 mOhm | Unshielded | 47 µH | 1 kHz | Through Hole | 11.43 mm | |||
Bourns Inc. | -55 C | 105 ░C | 15 % | Toroidal | 3.6 A | 0.86 in | Radial Vertical (Open) | 55 mOhm | Unshielded | 47 µH | 1 kHz | Through Hole | 11.43 mm |
