NRPN361 Series

Catalog

CONN HEADER R/A 36POS 2MM

Part	Contact Finish Thickness - Post	Insulation Color	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Shrouding	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post	Style	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Number of Positions	Contact Shape	Number of Rows	Termination	Overall Contact Length	Overall Contact Length

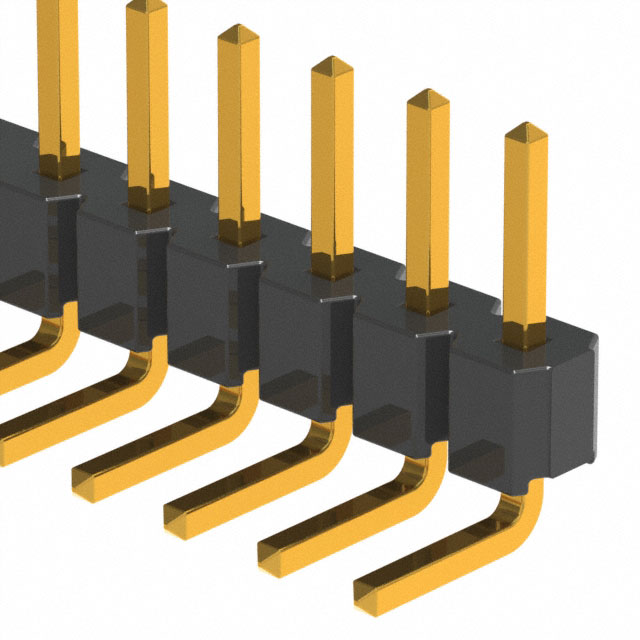

Sullins Connector Solutions NRPN361PARN-RC	Flash	Black	Nylon 6T Polyamide (PA6T)	Male Pin	0.079 "	2 mm	Right Angle Through Hole	Header	Push-Pull	Flash	Unshrouded	Brass	0.141 in	3.6 mm	Gold	2 mm	0.079 in	Gold	-40 C	105 ░C	All	0.11 in	2.79 mm	Board to Board Cable	2 A	UL94 V-0	150 VDC	36	Square	1	Solder
Sullins Connector Solutions NRPN361PAEN-RC	Flash	Black	Nylon 6T Polyamide (PA6T)	Male Pin	0.079 "	2 mm	Through Hole	Header	Push-Pull	Flash	Unshrouded	Brass	0.141 in	3.6 mm	Gold	2 mm	0.079 in	Gold	-40 C	105 ░C	All	0.11 in	2.79 mm	Board to Board Cable	2 A	UL94 V-0	150 VDC	36	Square	1	Solder	8.4 mm	0.331 in
