A51-428 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

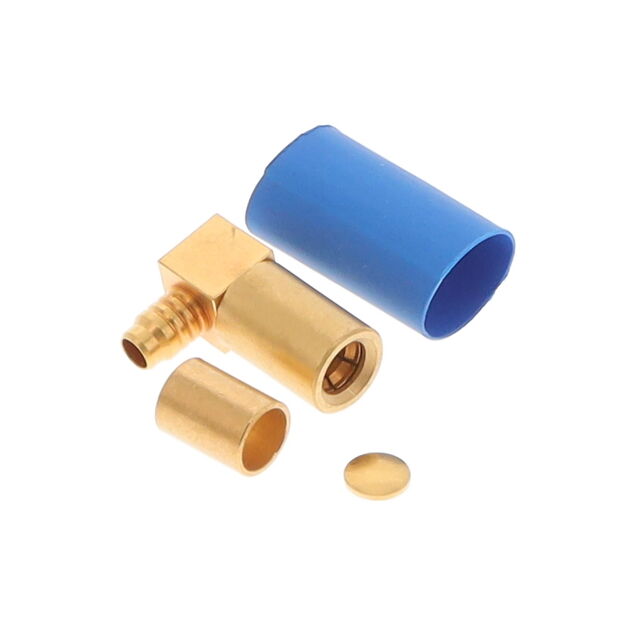

CONN SSMB PLUG R/A 50 OHM SOLDER
| Part | Dielectric Material | Insertion Loss | Mating Cycles | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Body Material | Housing Color | Connector Style | Cable Group | Cable Group | Connector Type | Impedance | Fastening Type | Shield Termination | Frequency - Max [Max] | Number of Ports | Contact Termination | Center Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Gold | Gold | -65 ░C | 165 °C | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink | Brass | Gold | SSMB | RG-174 | 316 | Female Socket Plug | 50 Ohms | Snap-On | Crimp | 4 GHz | 1 | Solder | Beryllium Copper | Free Hanging (In-Line) Right Angle |
