052893 Series

Manufacturer: Molex

Catalog

CONN FPC BOTTOM 8POS 0.5MM R/A

Part	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Features	Pitch [x]	Pitch [x]	Contact Material	Cable End Type	Flat Flex Type	Voltage Rating	Locking Feature	Height Above Board	Height Above Board	Contact Finish	FFC, FCB Thickness	Housing Material	Termination	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Connector/Contact Type	Actuator Material	Mating Cycles	Material Flammability Rating	Number of Positions
Molex 0528930833	Brown	85 °C	-40 °C	8	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Polyamide (PA) Nylon	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
Molex 0528933033	Brown	85 °C	-40 °C	30	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Polyamide (PA) Nylon	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
Molex 0528931495	Brown	85 °C	-25 °C	14	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FFC FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
Molex 0528931633	Brown	85 °C	-40 °C		Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Polyamide (PA) Nylon	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0	16

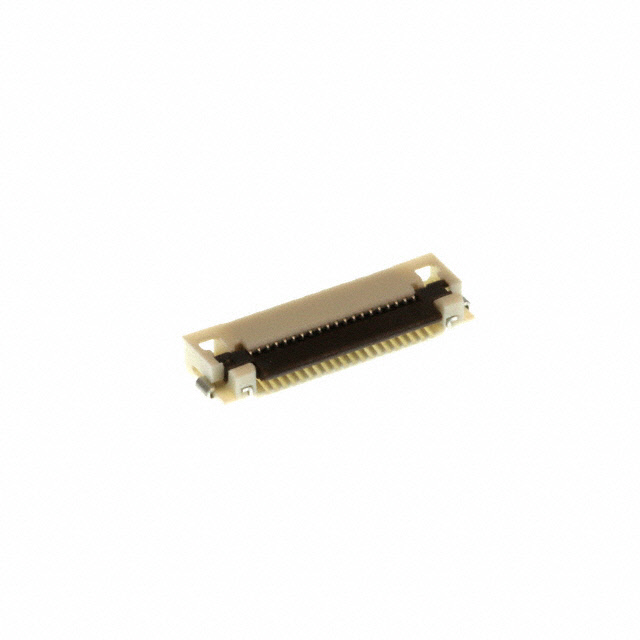

Molex 0528932095	Brown	85 °C	-25 °C	20	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FFC FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
Molex 0528932496
Molex 0528930896		85 °C	-20 C	8	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FFC FPC	50 V	Flip Lock	0.079 in	2 mm	Gold	0.3 mm	Polyamide (PA46) Nylon 4/6	Solder				0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS)	20	UL94 V-0

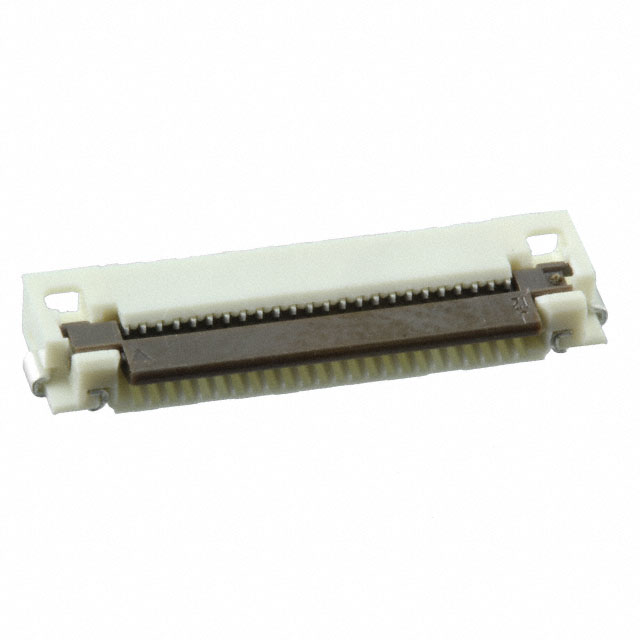

Molex 0528932495	Brown	85 °C	-25 °C	24	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FFC FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
Molex 0528932233	Brown	85 °C	-40 °C	22 positions	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Polyamide (PA) Nylon	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
Molex 0528931433	Brown	85 °C	-40 °C	14	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	0.5 mm	0.02 in	Phosphor Bronze	Straight Tapered	FPC	50 V	Flip Lock	0.079 in	2 mm	Tin Bismuth	0.3 mm	Polyamide (PA) Nylon	Solder	White	39.4 Áin	1 Ám	0.5 A	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0
