3FTL6 Series
Manufacturer: MEC Switches
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Switch Travel | Mechanical Life | Actuator Material | Features | Operating Force | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Termination Style | Circuit | Actuator Orientation | Actuator Type | Outline [x] | Outline [y] | Switch Function | Actuator Height off PCB, Vertical [z] | Mounting Type | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

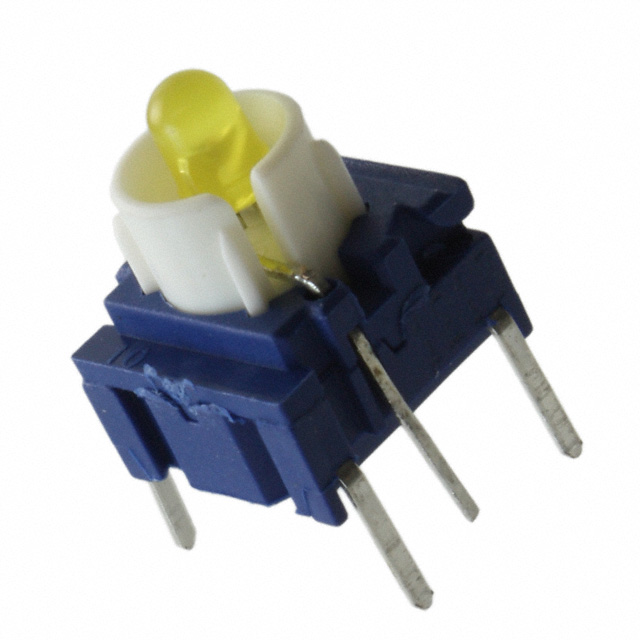

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2.3 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | LED Yellow |

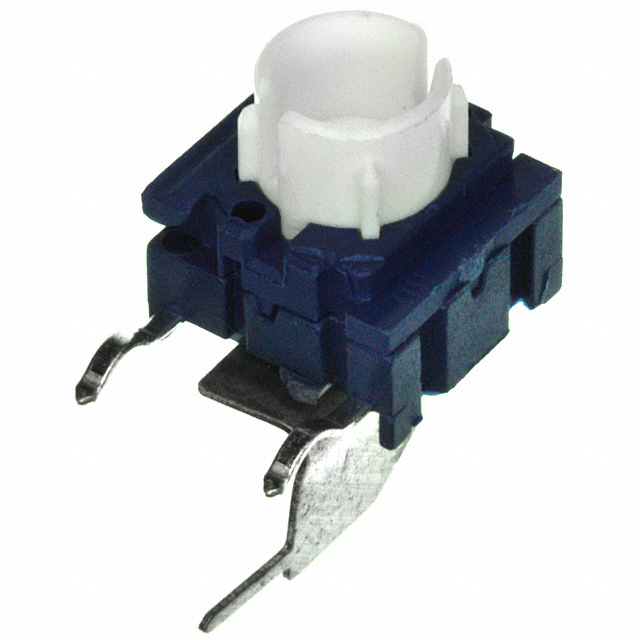

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Non-Illuminated | 0.05 A 24 VDC | PC Pin | SPST-NO | Side Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | Right Angle Through Hole | |||

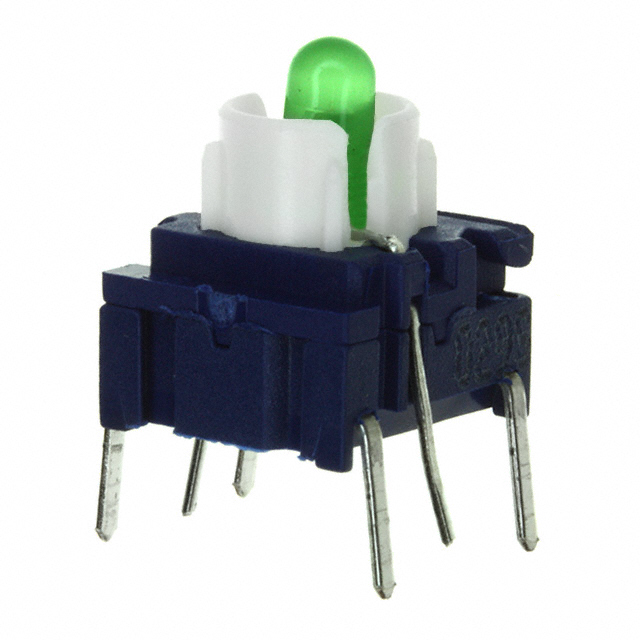

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2.1 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | Green LED |

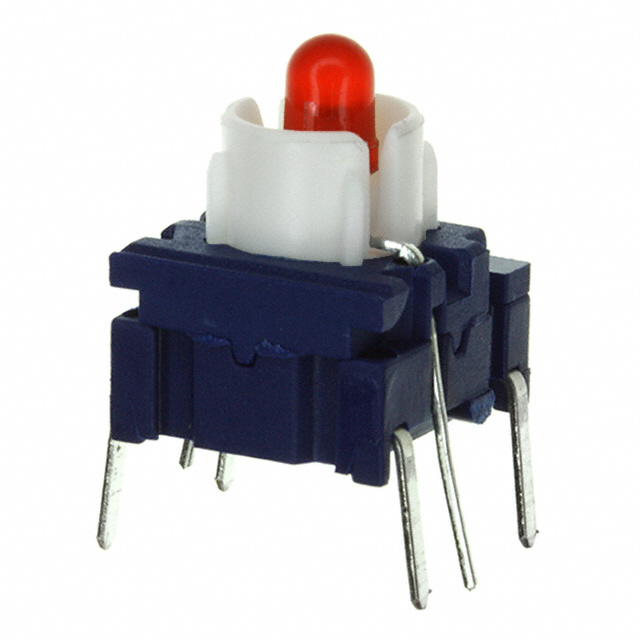

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | LED Red |

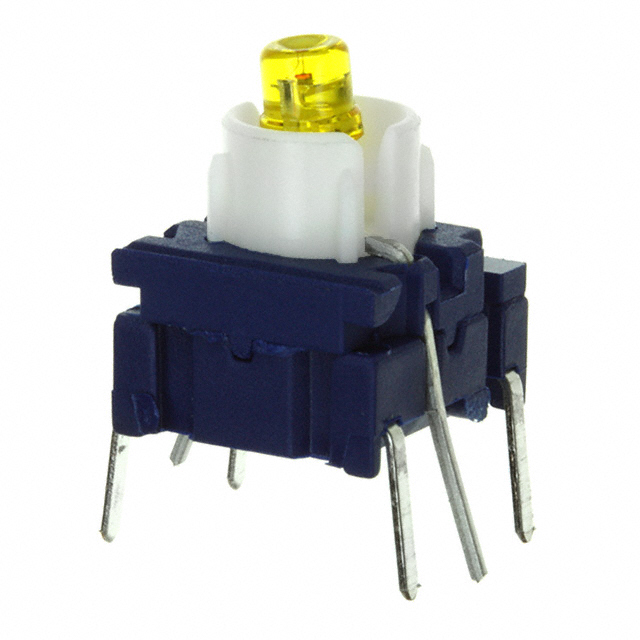

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2.1 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | LED Yellow |

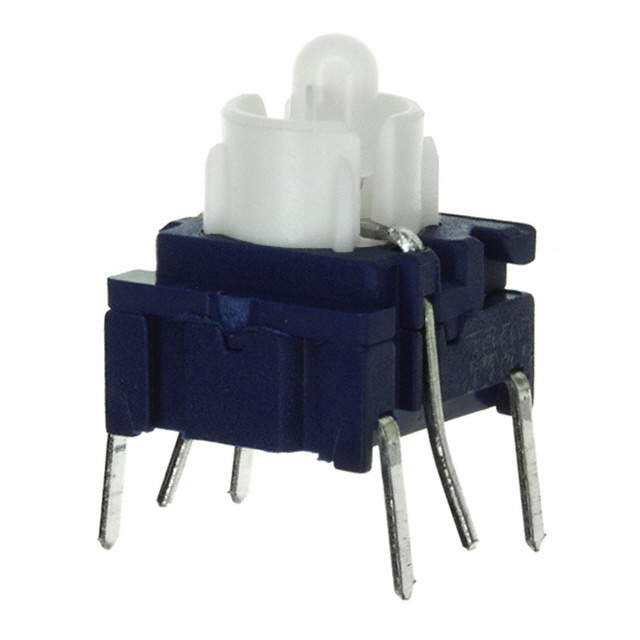

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2 VDC 2.1 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | Green/Red LED |
 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | Green LED |
MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | LED Red |

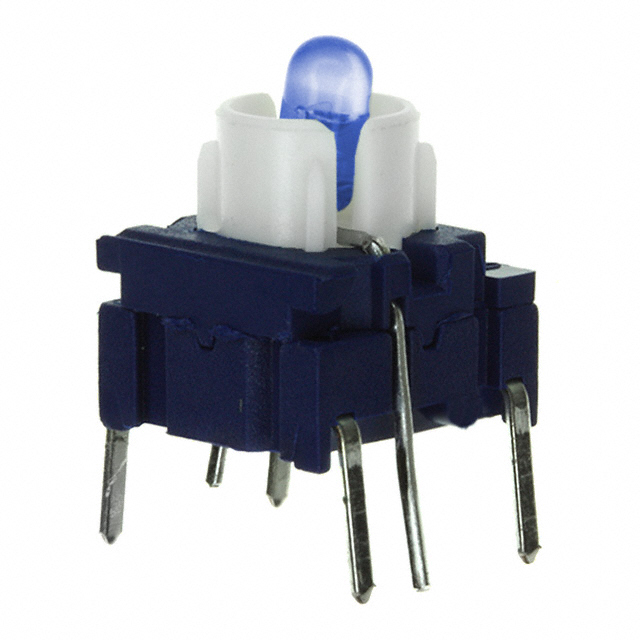

 MEC Switches | 1 mm | 10000000 Cycles | Polybutylene Terephthalate (PBT) | Sealed - Flux Protection | 300 gf | IP67 - Dust Tight Waterproof | 115 °C | -40 C | Illuminated | 2.1 VDC | 0.05 A 24 VDC | PC Pin | SPST-NO | Top Actuated | Plunger for Cap | 10.1 mm | 10.1 mm | Off-Mom | 10.4 mm | Through Hole | Blue LED |
