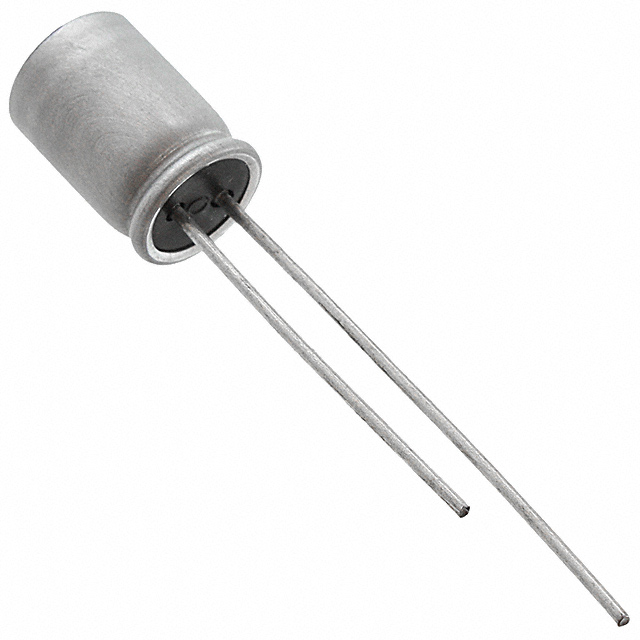

2SEPC Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP, 820ΜF, 2.5V, 20% ROHS COMPLIANT: YES

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Voltage - Rated	Lifetime @ Temp.	Tolerance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]
Panasonic Electronic Components 2SEPC820MW	0.248 "	6.3 mm	Can Radial	820 µF	2.5 mm	0.098 in	Through Hole	7 mOhms	5.6 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose	280 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC100MZ	0.197 in	5 mm	Can Radial	100 µF	2 mm	0.079 in	Through Hole	7 mOhms	4.18 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose		-55 C	105 ░C
Panasonic Electronic Components 2SEPC820MY+TSS	0.315 in	8 mm	Can Radial	820 µF	3.5 mm	0.138 in	Through Hole	5 mOhm	7.2 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose	360 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC330MW	0.248 "	6.3 mm	Can Radial	330 µF	2.5 mm	0.098 in	Through Hole	7 mOhms	5.6 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose	280 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC470MZ+TSS	0.197 in	5 mm	Can Radial	470 µF	2 mm	0.079 in	Through Hole	7 mOhms	4.18 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose		-55 C	105 ░C
Panasonic Electronic Components 2SEPC820MX	0.315 in	8 mm	Can Radial	820 µF	3.5 mm	0.138 in	Through Hole	7 mOhms	6.1 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose	305 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC820MD	0.315 in	8 mm	Can Radial	820 µF	3.5 mm	0.138 in	Through Hole	8 mOhms	5.3 A	2.5 V	5000 Hrs	20 %	Polymer	7 mm	0.276 in	General Purpose	265 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC560MX+TSS	0.315 in	8 mm	Can Radial	560 µF	3.5 mm	0.138 in	Through Hole	8 mOhms	4.7 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose	235 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC820MD+TSS	0.315 in	8 mm	Can Radial	820 µF	3.5 mm	0.138 in	Through Hole	8 mOhms	5.3 A	2.5 V	5000 Hrs	20 %	Polymer	7 mm	0.276 in	General Purpose	265 mA	-55 C	105 ░C
Panasonic Electronic Components 2SEPC1000MX	0.315 in	8 mm	Can Radial	1000 µF	3.5 mm	0.138 in	Through Hole	7 mOhms	6.1 A	2.5 V	5000 Hrs	20 %	Polymer	9 mm	0.354 in	General Purpose	305 mA	-55 C	105 ░C
