NCP692 Series

Catalog

EVALUATION BOARD, LDO, ACTIVE OUTPUT DISCHARGE, ADJUSTABLE OUTPUT BY EXTERNAL RESISTORS

Part	Channels per IC	Board Type	Supplied Contents	Utilized IC / Part	Current - Output	Voltage - Output	Regulator Type	Current - Supply (Max) [Max]	Supplier Device Package	Voltage - Output (Min/Fixed)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Control Features	Number of Regulators	Voltage - Input (Max) [Max]	Output Configuration	Voltage Dropout (Max) [Max]	Package / Case	Current - Quiescent (Iq)	Output Type	PSRR [Max]	PSRR [Min]	Voltage - Output (Max)

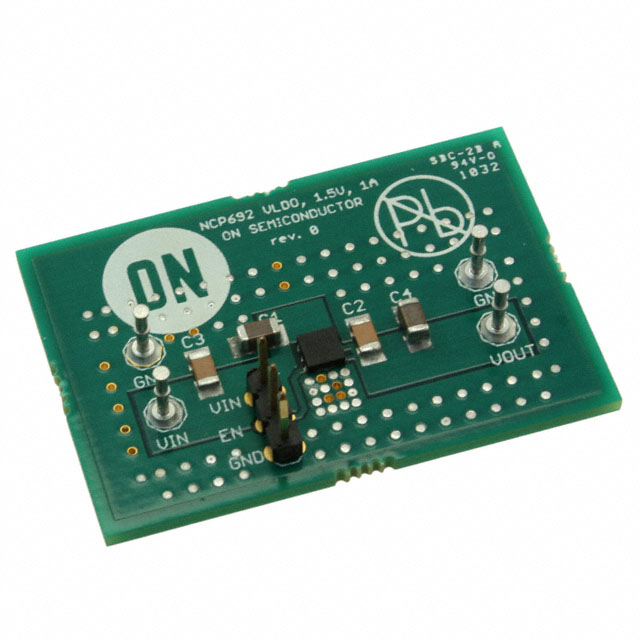

ON Semiconductor NCP692MN15T2GEVB	1 - Single	Fully Populated	Board(s)	NCP692	1 A	1.5 V	Positive Fixed
ON Semiconductor NCP692MN15T2G					1 A			240 µA	6-DFN (3x3)	1.5 V	Surface Mount	85 °C	-40 °C	1.81 mOhm	Enable	1	6 V	Positive	0.41 V	6-VDFN Exposed Pad	200 µA
ON Semiconductor NCP692MN18T2G					1 A			240 µA	6-DFN (3x3)	1.8 V	Surface Mount	85 °C	-40 °C	1.81 mOhm	Enable	1	6 V	Positive		6-VDFN Exposed Pad	200 µA

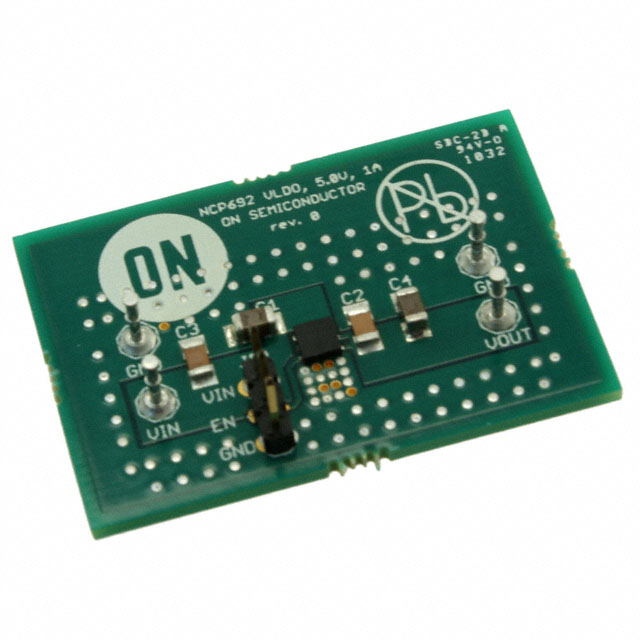

ON Semiconductor NCP692MN50T2GEVB	1 - Single	Fully Populated	Board(s)	NCP692	1 A	5 V	Positive Fixed
ON Semiconductor NCP692MN25T2G					1 A			240 µA	6-DFN (3x3)	2.5 V	Surface Mount	85 °C	-40 °C	1.81 mOhm	Enable	1	6 V	Positive	0.3 V	6-VDFN Exposed Pad	200 µA
ON Semiconductor NCP692MNADJT2G					1 A			240 µA	6-DFN (3x3)	1.25 V	Surface Mount	85 °C	-40 °C		Enable	1	6 V	Positive	0.47 V	6-VDFN Exposed Pad	200 µA	Adjustable	62 dB	40 dB	5 V
