C2220H Series

Manufacturer: KEMET

Catalog

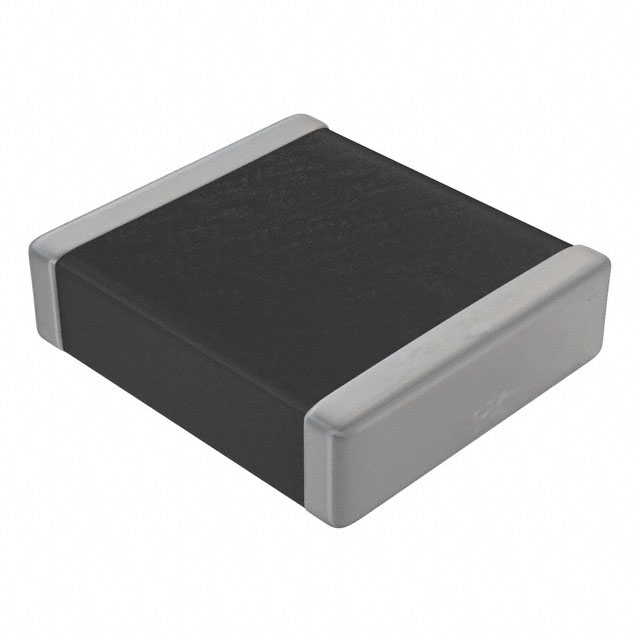

CAP CER 3600PF 2KV C0G/NP0 2220

Part	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Voltage - Rated	Voltage - Rated	Features	Temperature Coefficient	Tolerance	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]
KEMET C2220H362JGGAFT050	3600 pF	200 °C	-55 C	2220	5750 Metric	5.7 mm	0.224 "	0.197 "	5 mm	Downhole	2000 V	2 kV	High Temperature High Voltage Low ESL	C0G NP0	5 %	MLCC Surface Mount	0.106 in	2.7 mm
KEMET C2220H123JDGAC7800	0.012 µF	200 °C	-55 C	2220	5750 Metric	5.7 mm	0.224 "	0.197 "	5 mm	Downhole	1000 V	1 kV	High Temperature High Voltage Low ESL	C0G NP0	5 %	MLCC Surface Mount	0.106 in	2.7 mm
KEMET C2220H333JCGAFT050	0.033 çF	200 °C	-55 C	2220	5750 Metric	5.7 mm	0.224 "	0.197 "	5 mm	Downhole	500 V		High Temperature High Voltage Low ESL	C0G NP0	5 %	MLCC Surface Mount	0.106 in	2.7 mm
KEMET C2220H474J5GAC7800	0.47 µF	200 °C	-55 C	2220	5750 Metric	5.7 mm	0.224 "	0.197 "	5 mm	Downhole	50 VDC		High Temperature Low ESL	C0G NP0	5 %	MLCC Surface Mount	0.093 in	2.35 mm
