FSA32 Series

Catalog

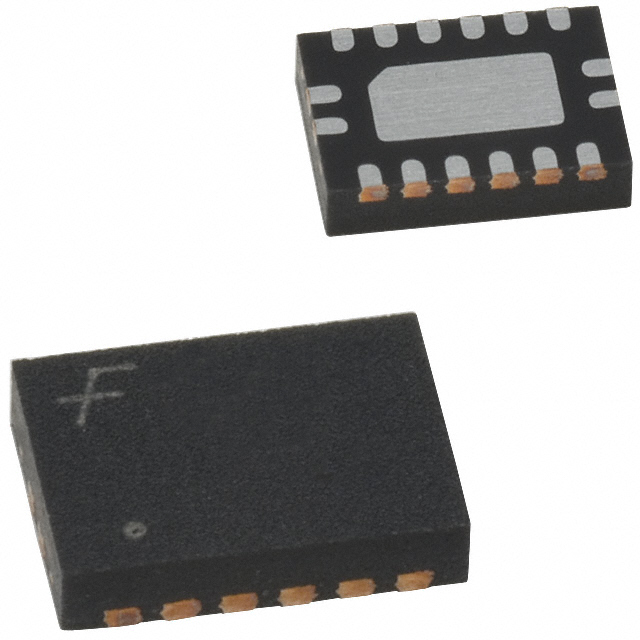

IC SWITCH SP3T X 2 15OHM 16DQFN

Part	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Package / Case	Current - Leakage (IS(off)) (Max) [Max]	Charge Injection	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	-3db Bandwidth	On-State Resistance (Max) [Max]	Crosstalk	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Circuit	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Mounting Type
ON Semiconductor FSA3259BQX	3.7 ns	6.5 ns	16-WFQFN Exposed Pad	100 nA	3 pC	150 mOhm	3:1	250 MHz	15 Ohm	-60 dB	3.6 pF	3.6 pF	SP3T	2	85 °C	-40 °C	16-DQFN (2.5x3.5)	1.65 V	5.5 V	Surface Mount
