05K121 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION N TYPE ADAPTER
| Part | Insertion Loss | Dielectric Material | Center Contact Material | Body Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Adapter Type | Conversion Type | Center Contact Plating | Impedance | Center Gender | Style | Mounting Type | Convert From (Adapter End) | Convert To (Adapter End) | Frequency - Max [Max] | Adapter Series | Voltage Rating | Number of Ports | Contact Termination | Connector Type | Fastening Type | Connector Style | Shield Termination | Specifications | Type | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

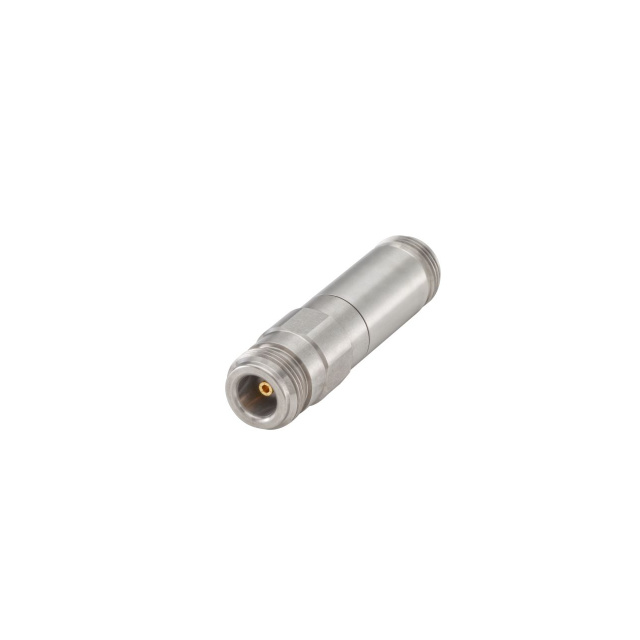

 Rosenberger | 0.21 dB | Polyphenylene Ether (PPE) | Beryllium Copper | Stainless Steel | 500 | 85 °C | -40 C | Jack to Jack | Same Series | Gold | 50 Ohms | Female to Female | Straight | Free Hanging (In-Line) | Female Socket N Jack | N Jack Female Socket | 18 GHz | RJC-N to RJC-N | |||||||||||

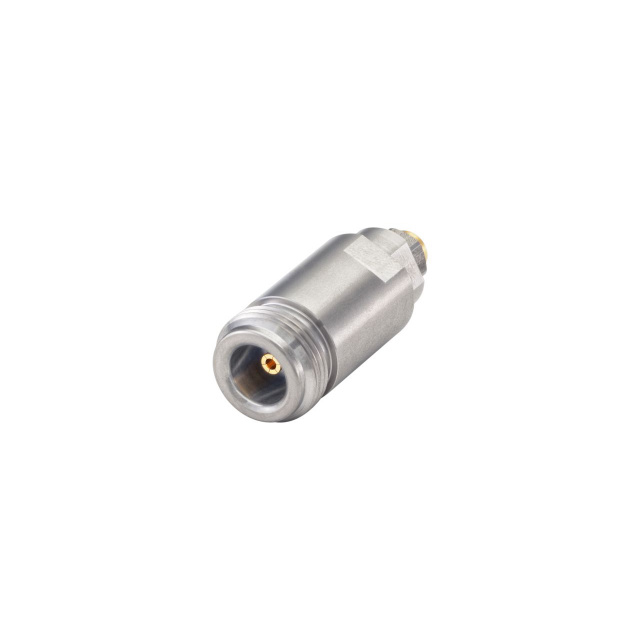

 Rosenberger | Polyphenylene Ether (PPE) | Beryllium Copper | Stainless Steel | 500 | 85 °C | -40 C | Gold | 50 Ohms | Panel Mount | 18 GHz | 335 V | 1 | Solder | Female Socket Jack | Push-Pull | N Type | Solder | ||||||||||||
 Rosenberger | Jack N Type 50Ohm Jack | Specialized | Network Analyzer | Calibration Adapter |
