044248 Series
Manufacturer: Molex
Beta
⌘K
CONN MOD JACK 8P8C R/A SHIELDED
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Contacts | LED Color | Tab Direction | Ratings | Contact Finish | Shielding | Termination | Number of Ports | Connector Type | Number of Rows | Mounting Type | Orientation | Housing Material | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

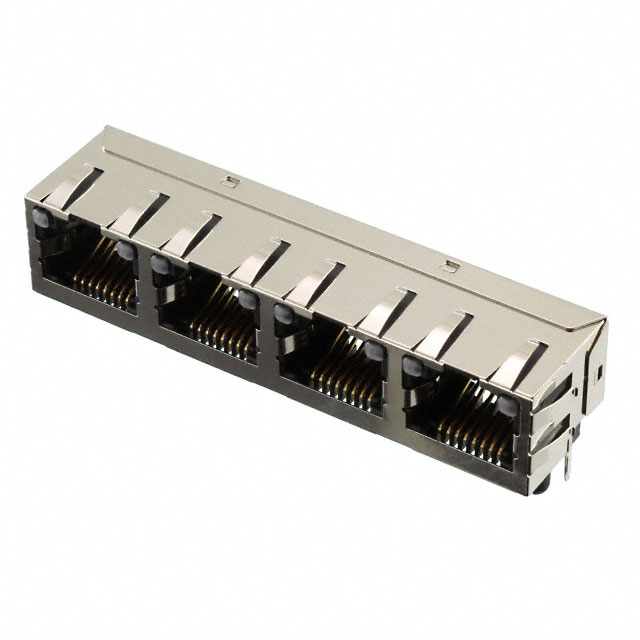

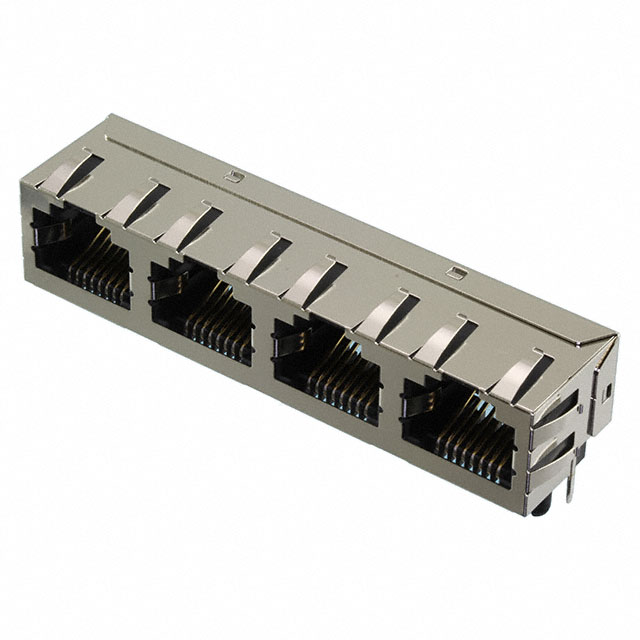

 Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Shielded EMI Finger | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | |

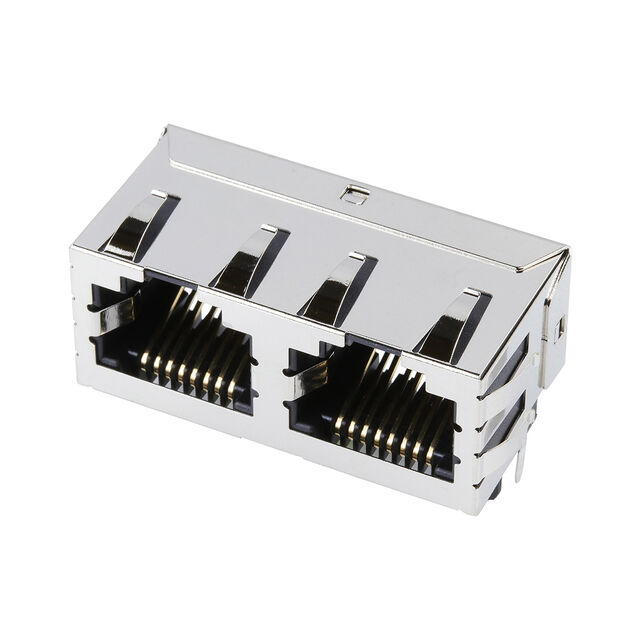

 Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Shielded EMI Finger | Solder | 2 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | |
 Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Shielded EMI Finger | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | Board Lock Light Pipe |

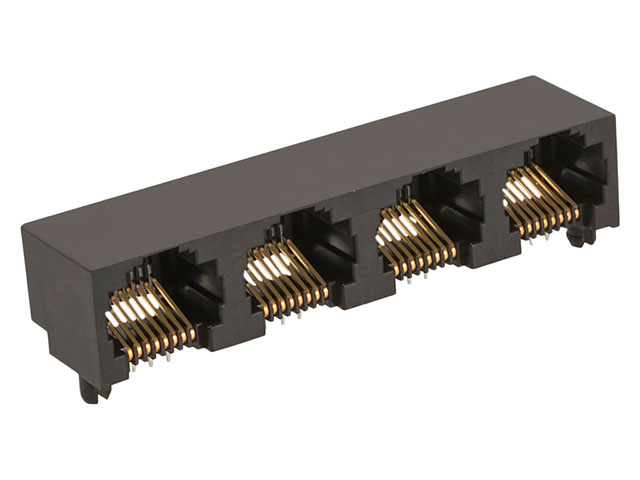

 Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Unshielded | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | |
Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Unshielded | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | |
Molex | 85 °C | -40 °C | 6p6c (RJ11 RJ12 RJ14 RJ25) | Does Not Contain LED | Up | Cat3 | Gold | Unshielded | Solder | 2 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | |
Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Unshielded | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | Board Lock Light Pipe |
Molex | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Up | Cat3 | Gold | Shielded EMI Finger | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | Board Lock Light Pipe |
Molex | 85 °C | -40 °C | 6p6c (RJ11 RJ12 RJ14 RJ25) | Does Not Contain LED | Up | Cat3 | Gold | Unshielded | Solder | 2 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm | Board Lock Light Pipe |
Molex | 85 °C | -40 °C | 6p6c (RJ11 RJ12 RJ14 RJ25) | Does Not Contain LED | Up | Cat3 | Gold | Shielded EMI Finger | Solder | 4 | Jack | 1 | Through Hole | 90 ° | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | 50 µin | 1.27 µm |
