170807 Series

Board to Board & Mezzanine Connectors 2.80MM PLG 96P 4X8,32 TRI AU

Manufacturer: Molex

Catalog

Board to Board & Mezzanine Connectors 2.80MM PLG 96P 4X8,32 TRI AU

Catalog

Board to Board & Mezzanine Connectors 2.80MM PLG 96P 4X8,32 TRI AU

Part	Mated Stacking Heights	Mounting Type	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Rows	Height Above Board	Height Above Board
Molex 1708072025	7 mm	Surface Mount	216	Array Male Pins	30 Áin	0.76 Ám	Board Guide Pick and Place	Gold	0.608 in	15.44 mm	2.8 mm	0.11 in
Molex 1708070039	7 mm	Surface Mount	216	Array Male Pins	30 Áin	0.76 Ám	Board Guide Pick and Place	Gold	0.608 in	15.44 mm	2.8 mm	0.11 in
Molex 1708070036	7 mm	Surface Mount	216	Array Male Pins	30 Áin	0.76 Ám	Board Guide Pick and Place	Gold	0.608 in	15.44 mm	2.8 mm	0.11 in
Molex 1708070015		Surface Mount	48	Array Male Pins	30 Áin	0.76 Ám	Board Guide	Gold	0.634 in	16.1 mm	2.8 mm	0.11 in	6
Molex 1708070030

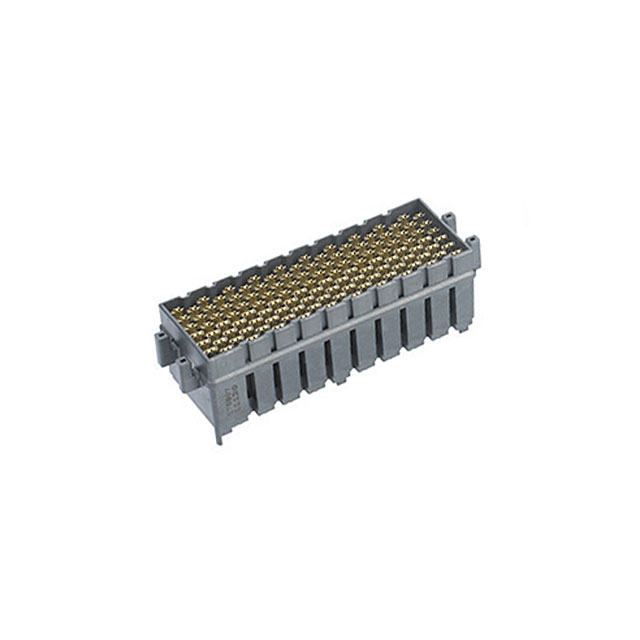

Molex 1708072008		Surface Mount	72	Array Male Pins	30 Áin	0.76 Ám	Board Guide	Gold	0.634 in	16.1 mm	2.8 mm	0.11 in	6
Molex 1708072016		Surface Mount	72	Array Male Pins	30 Áin	0.76 Ám	Board Guide	Gold			2.8 mm	0.11 in	6

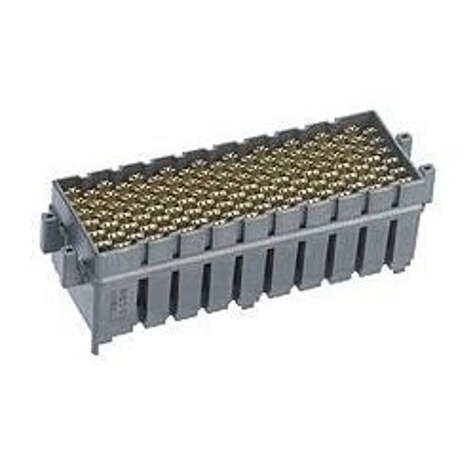

Molex 1708072007		Surface Mount	144	Array Male Pins	30 Áin	0.76 Ám	Board Guide Pick and Place	Gold			2.8 mm	0.11 in	6	0.71 in	18 mm

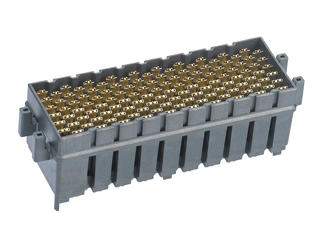

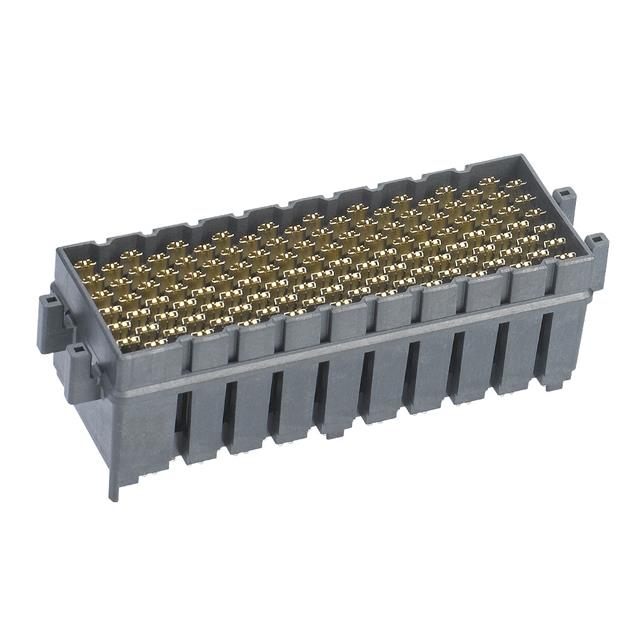

Molex 1708073005	7 mm	Surface Mount	216	Array Male Pins	30 Áin	0.76 Ám	Board Guide Pick and Place	Gold	0.608 in	15.44 mm	2.8 mm	0.11 in
Molex 1708072006
