1734348 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

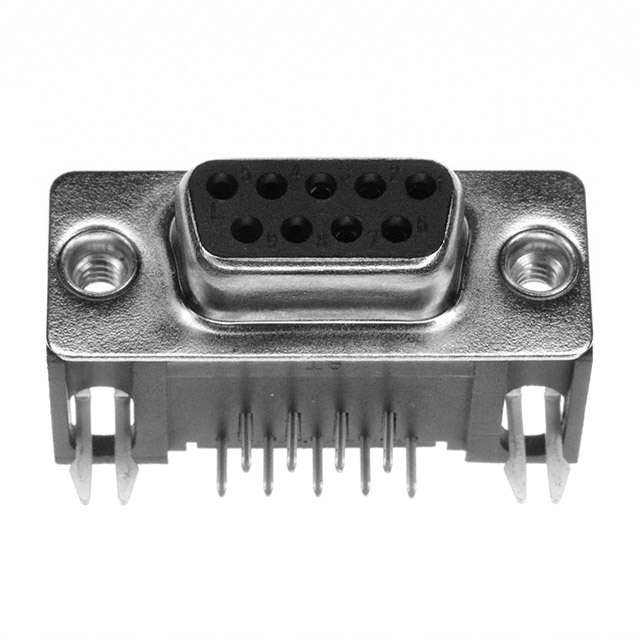

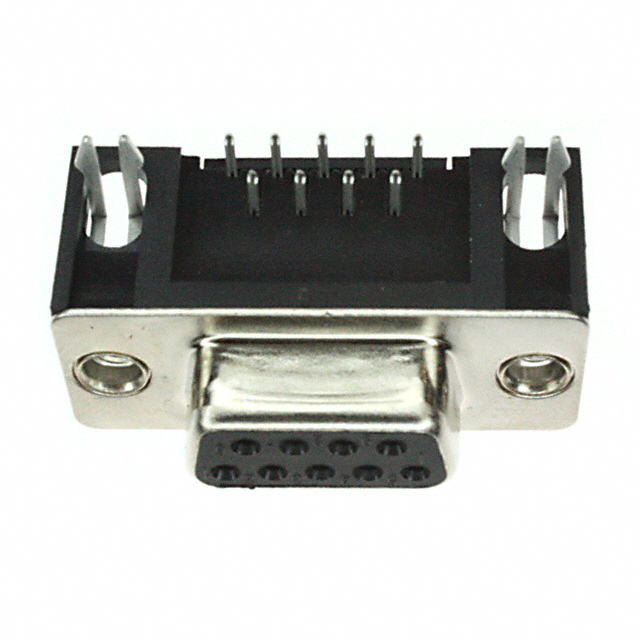

D SUB CONNECTOR, AMPLIMITE HD-20, AMPLIMITE HD-20 SERIES, DE, RECEPTACLE, 9, METAL, SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Color | Mounting Type | Flange Feature | Flange Feature | Connector Style | Material Flammability Rating | Contact Finish | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Connector Type | Backset Spacing | Backset Spacing | Number of Positions | Number of Rows [custom] | Shell Material, Finish | Contact Type | Features | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Thermoplastic | 250 V | Black | Right Angle Through Hole | Housing/Shell | 4-40 | D-Sub | UL94 V-0 | Gold | Solder | 1 | DE E | Flash | Receptacle Female Sockets | 8.08 mm | 0.318 " | 9 | 2 | Nickel Plated Steel | Signal | Board Lock | 2 A | ||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Thermoplastic | 250 V | Black | Right Angle Through Hole | Housing/Shell | 4-40 | D-Sub | UL94 V-0 | Gold | Solder | 1 | DE E | Receptacle Female Sockets | 8.08 mm | 0.318 " | 9 | 2 | Nickel Plated Steel | Signal | Board Lock | 2 A | 0.38 µm | 15 µin |
