WM091 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 9.5"L X 6.34"W

Part	Weight	Weight	Height	Height	Ratings	Size / Dimension	Size / Dimension	Color	Material	Thickness	Thickness	Features	Material Flammability Rating	Area (L x W)	Area (L x W)	Design	Container Type	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM091,BK	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Black	ABS Plastic	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box

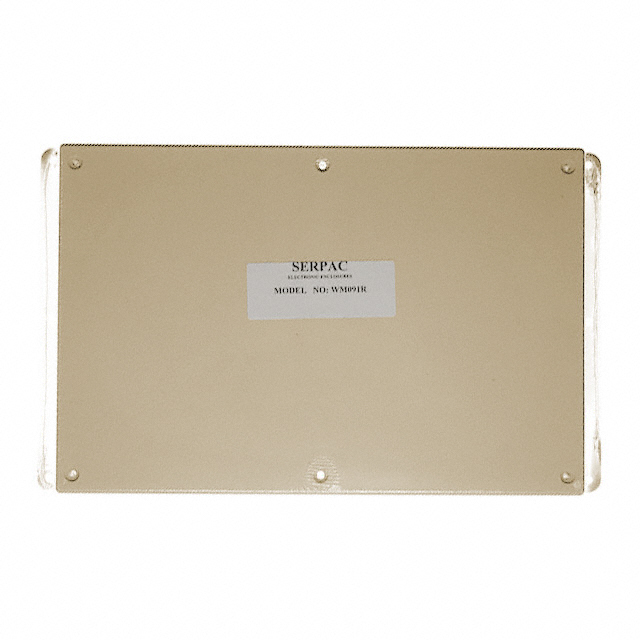

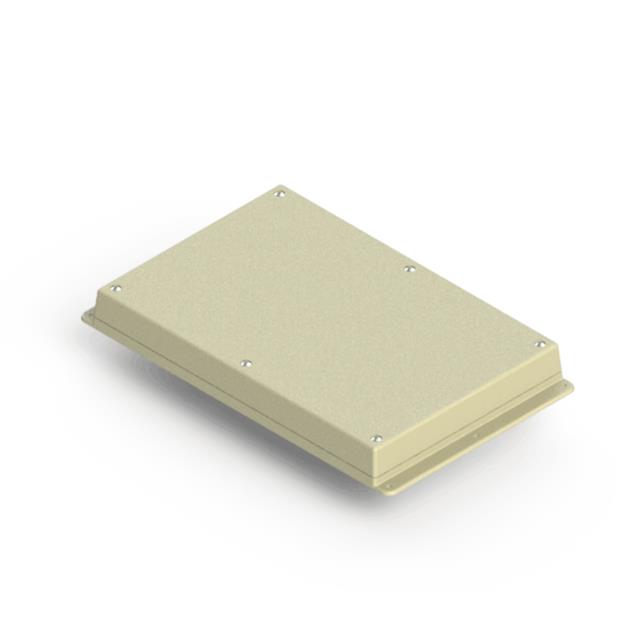

Serpac WM091R,AL	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Almond	ABS Plastic	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box

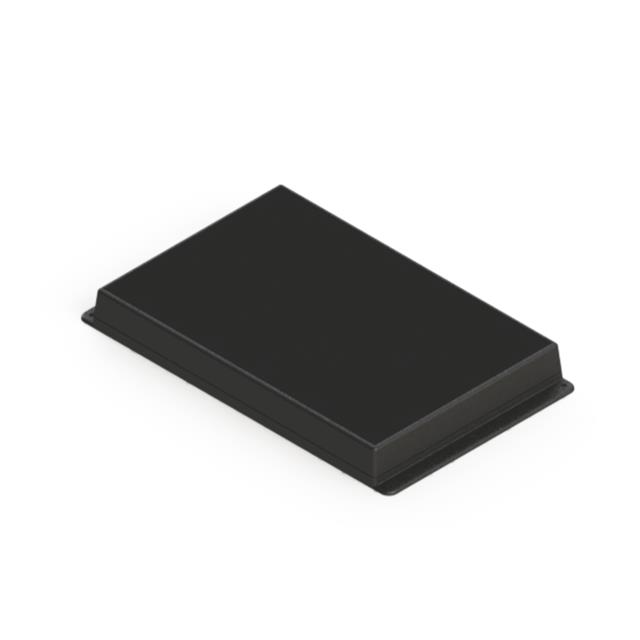

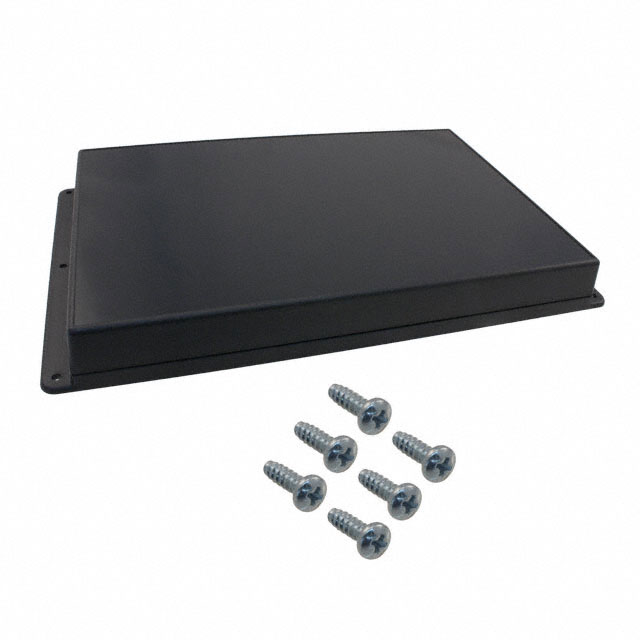

Serpac WM091I,BK	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Black	ABS Plastic	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box	60.2 in˛	388 cm˛

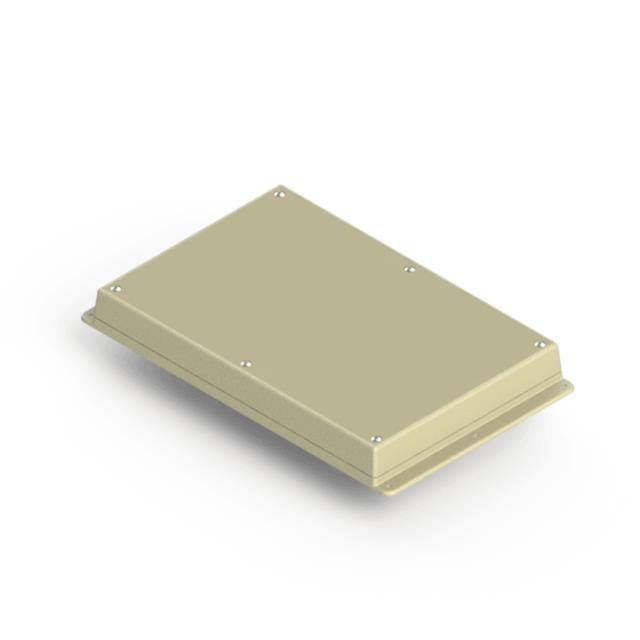

Serpac WM091RI,AL	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Almond	ABS Plastic	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box

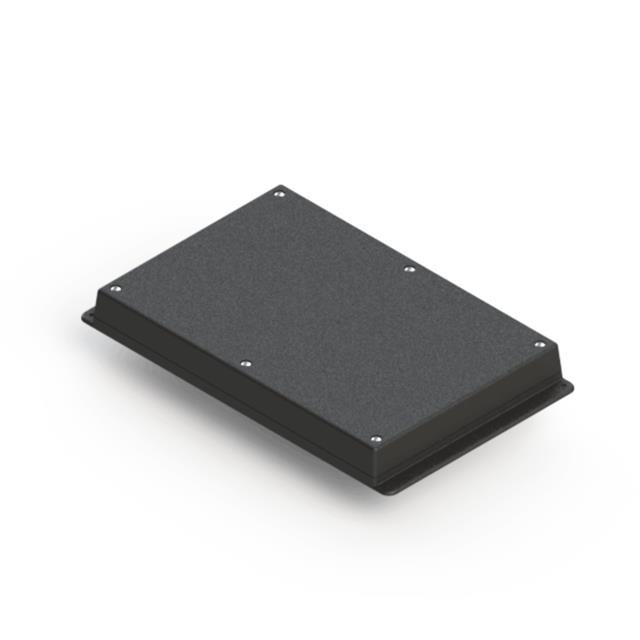

Serpac WM091R,BK	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Black	ABS Plastic	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box

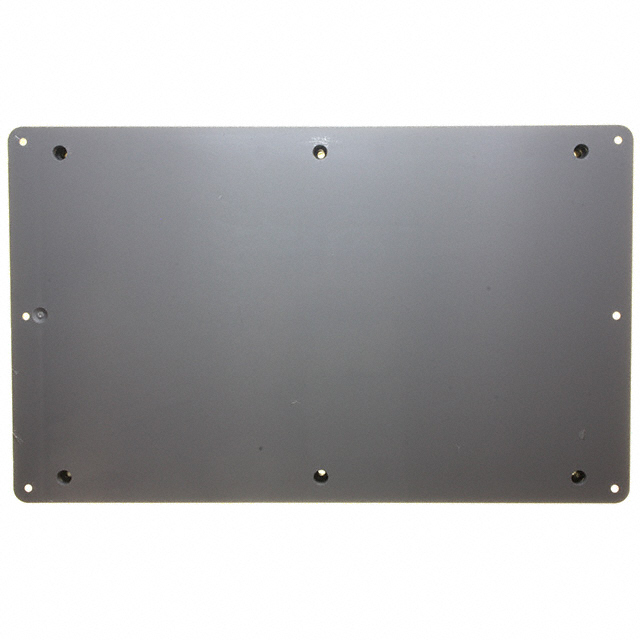

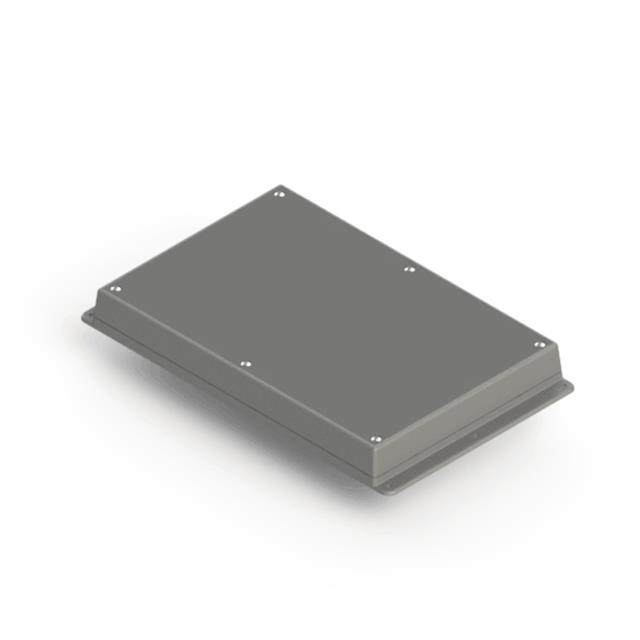

Serpac WM091RI,GY	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Gray	ABS Plastic	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box

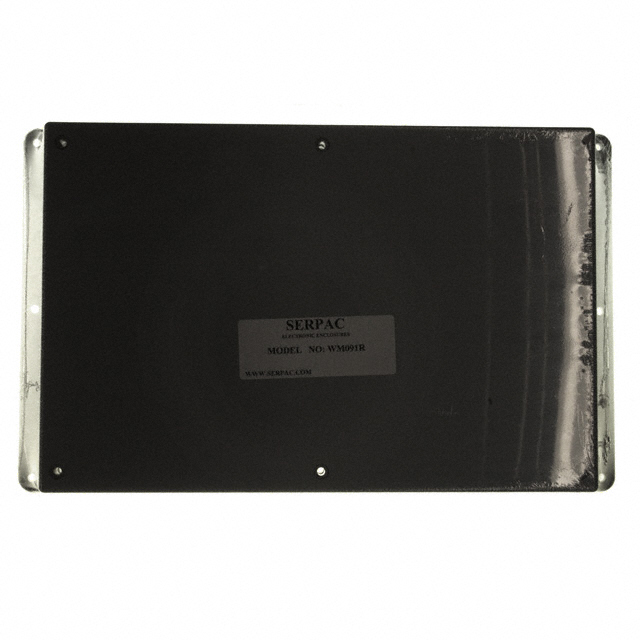

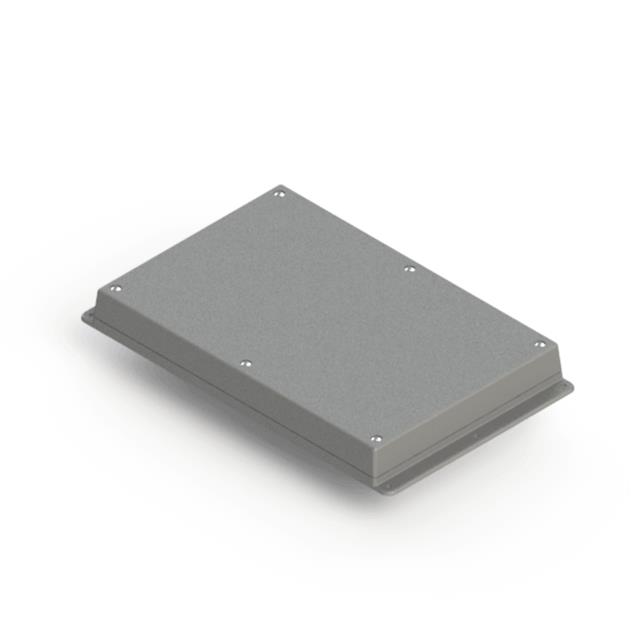

Serpac WM091R,GY	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Gray	ABS Plastic	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box

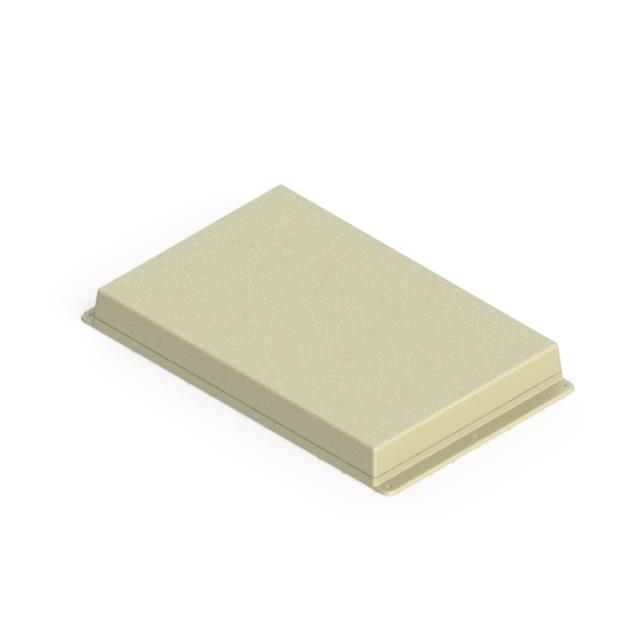

Serpac WM091,AL	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Almond	ABS Plastic	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box
Serpac WM091I,GY	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Gray	ABS Plastic	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box	60.2 in˛	388 cm˛

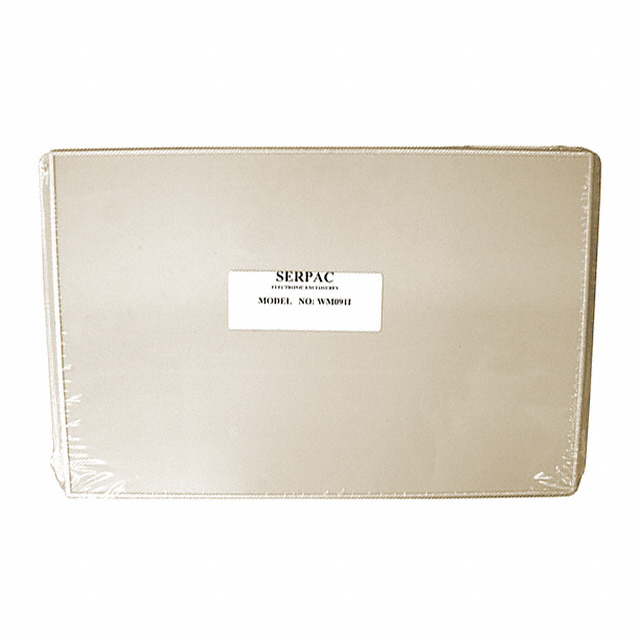

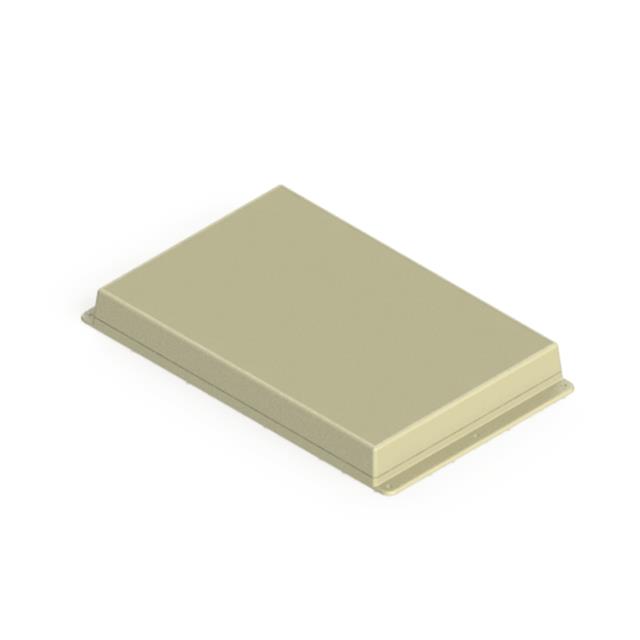

Serpac WM091I,AL	0.553 lb	250.84 g	27.94 mm	1.1 in	IP40 NEMA 1	6.34 in 9.5 in	161.04 mm 241.3 mm	Almond	ABS Plastic	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	60.2 in²	388 cm²	Cover Included	Box
