M2012TY Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Features	Voltage Rating - DC	Termination Style	Approval Agency	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Switch Function	Color - Actuator/Cap

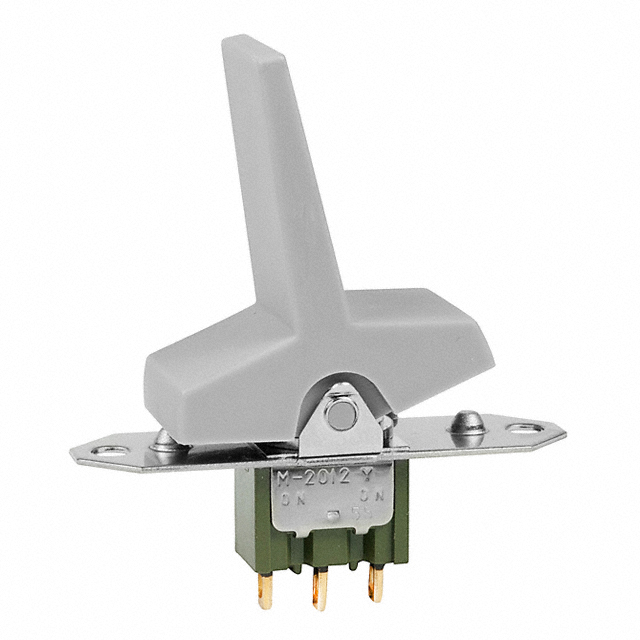

NKK Switches M2012TYG01-HH	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	28 V	Solder Lug	CSA UL	Flange Panel Mount	28 V	0.4 VA	SPDT	85 °C	-30 ░C	Paddle	16 mm	28.5 mm	No Marking	On-On
NKK Switches M2012TYG01-JC	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	28 V	Solder Lug	CSA UL	Flange Panel Mount	28 V	0.4 VA	SPDT	85 °C	-30 ░C	Concave	16 mm	28.5 mm	No Marking	On-On	Red

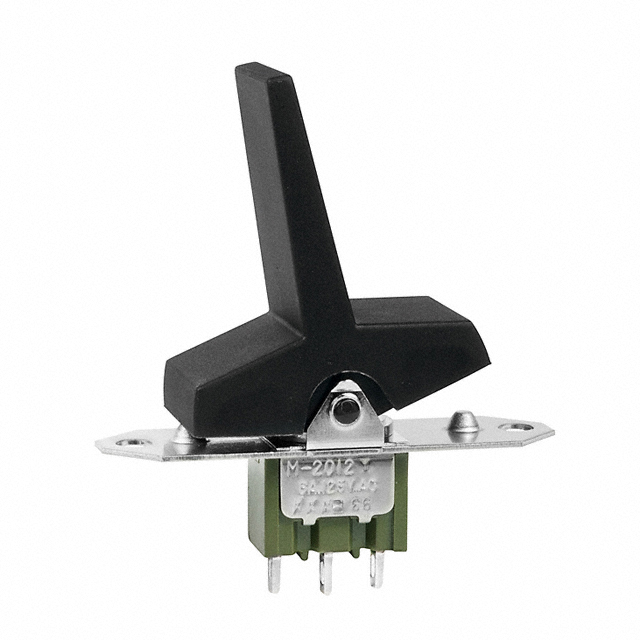

NKK Switches M2012TYW01-HA	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	30 V	Solder Lug	CSA UL	Flange Panel Mount	125 V	4 A 6 A	SPDT	85 °C	-30 ░C	Paddle	16 mm	28.5 mm	No Marking	On-On	Black

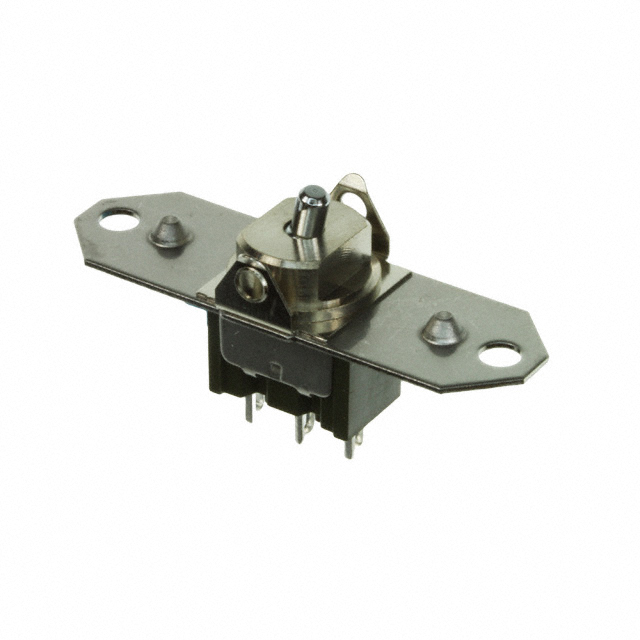

NKK Switches M2012TYW01	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	30 V	Solder Lug	CSA UL	Flange Panel Mount	125 V	4 A 6 A	SPDT	85 °C	-30 ░C	Actuator Arm Cap Required	16 mm	28.5 mm	Varies by Cap	On-On
NKK Switches M2012TYG01	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	28 V	Solder Lug	CSA UL	Flange Panel Mount	28 V	0.4 VA	SPDT	85 °C	-30 ░C	Actuator Arm Cap Required	16 mm	28.5 mm	Varies by Cap	On-On

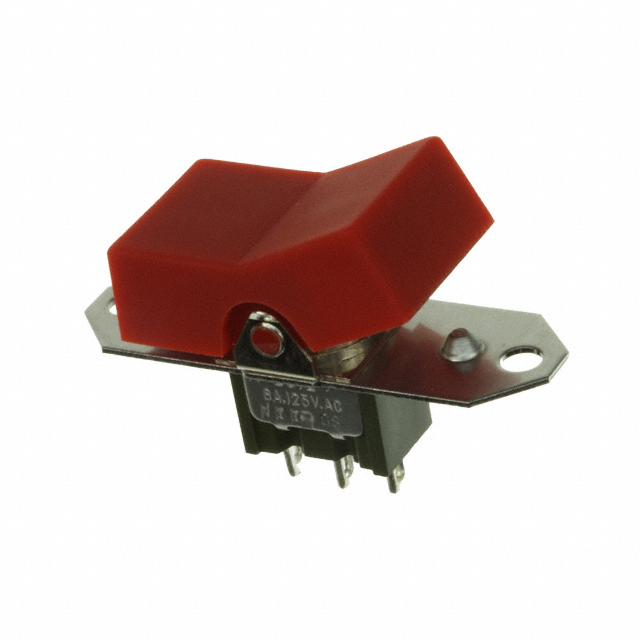

NKK Switches M2012TYW01-JC	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	30 V	Solder Lug	CSA UL	Flange Panel Mount	125 V	4 A 6 A	SPDT	85 °C	-30 ░C	Concave	16 mm	28.5 mm	No Marking	On-On	Red

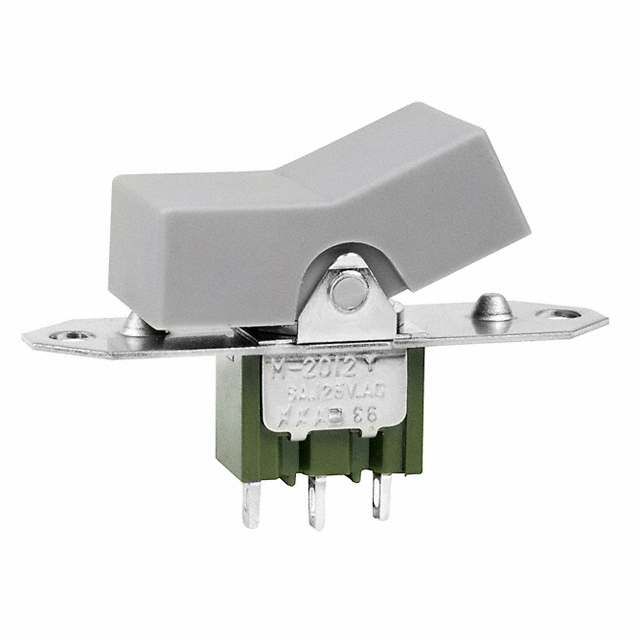

NKK Switches M2012TYW01-JH	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	30 V	Solder Lug	CSA UL	Flange Panel Mount	125 V	4 A 6 A	SPDT	85 °C	-30 ░C	Concave	16 mm	28.5 mm	No Marking	On-On

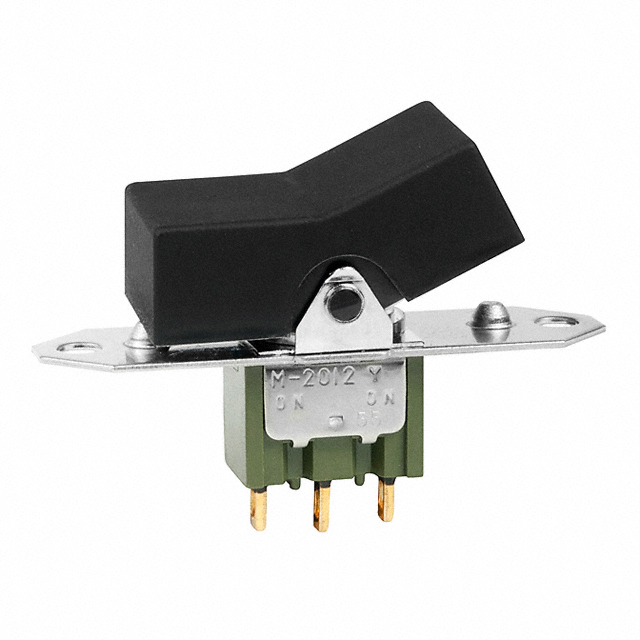

NKK Switches M2012TYG01-JA	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	28 V	Solder Lug	CSA UL	Flange Panel Mount	28 V	0.4 VA	SPDT	85 °C	-30 ░C	Concave	16 mm	28.5 mm	No Marking	On-On	Black
