746-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 36POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Gender	Contact Material	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Number of Positions/Bay/Row [custom]	Card Type	Color	Mounting Type	Pitch	Pitch	Contact Finish	Termination Rows	Number of Positions/Bay/Row	Number of Rows

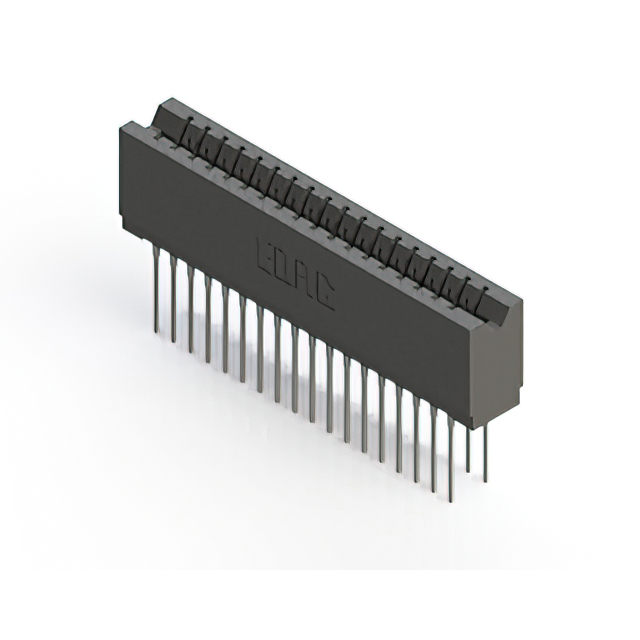

EDAC Inc. 746-036-553-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit Wire Wrap	36	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	18	Non Specified - Dual Edge	Black	Through Hole	3.18 mm	0.125 in	Gold

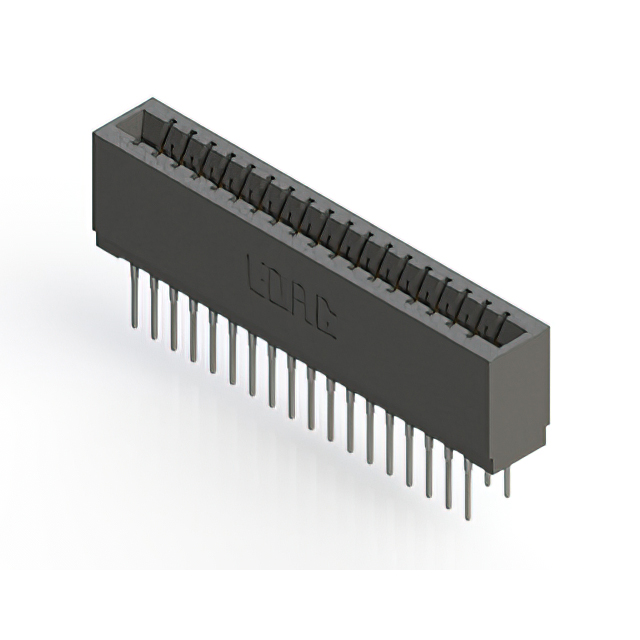

EDAC Inc. 746-036-527-601	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	18	Non Specified - Dual Edge	Black	Through Hole	3.18 mm	0.125 in	Gold

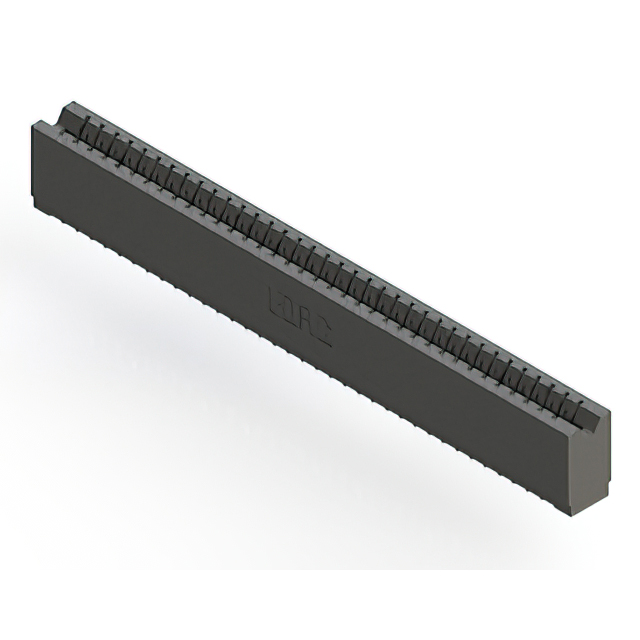

EDAC Inc. 746-036-520-106	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1
EDAC Inc. 746-036-520-501	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1
EDAC Inc. 746-036-525-506	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1
EDAC Inc. 746-036-525-501	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1

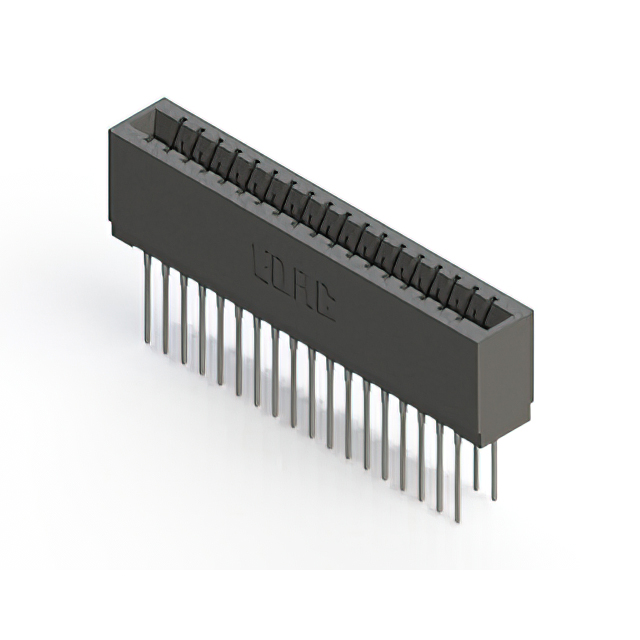

EDAC Inc. 746-036-540-201	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit Wire Wrap	36	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	18	Non Specified - Dual Edge	Black	Through Hole	3.18 mm	0.125 in	Gold
EDAC Inc. 746-036-553-506	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit Wire Wrap	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1
EDAC Inc. 746-036-525-101	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1
EDAC Inc. 746-036-527-501	Polyester Thermoplastic		-40 C	105 ░C	Cantilever	30 Áin	0.76 Ám	Press-Fit	36	Female	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	Single		Non Specified - Single Edge	Black	Through Hole	3.18 mm	0.125 in	Gold	1	36	1
