CDFV9W4 Series
Manufacturer: NorComp Inc.
Beta
⌘K

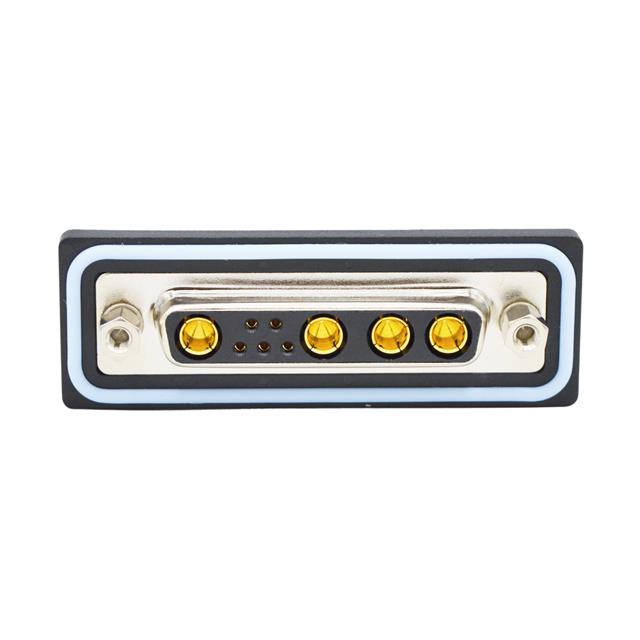

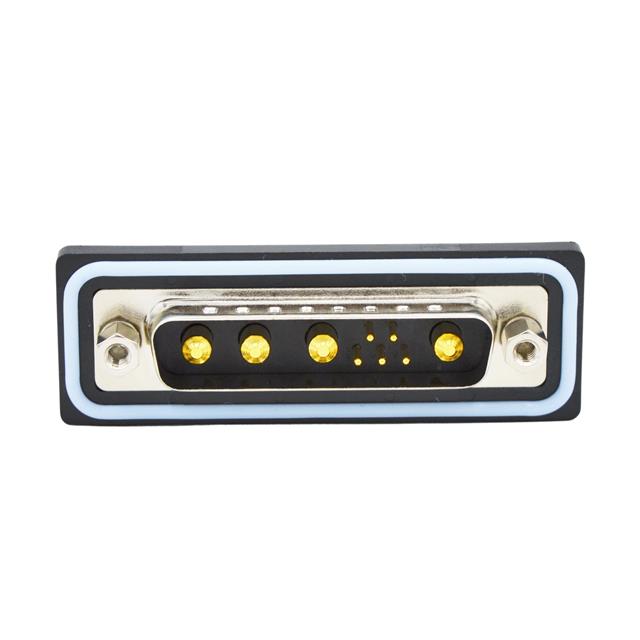

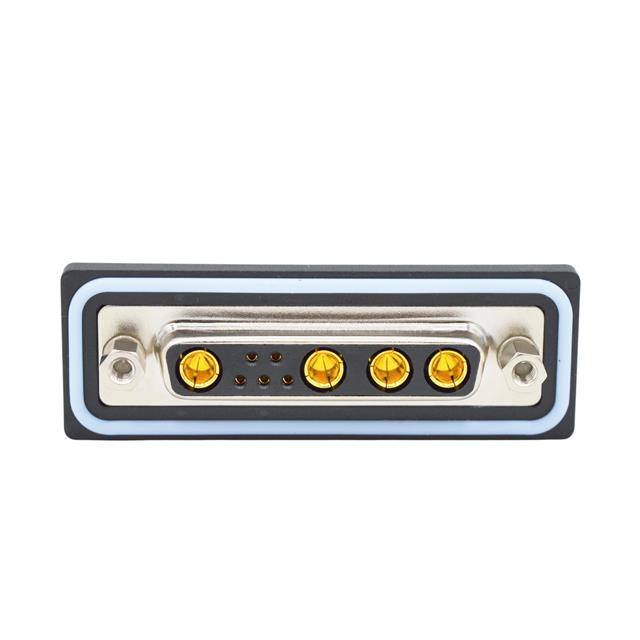

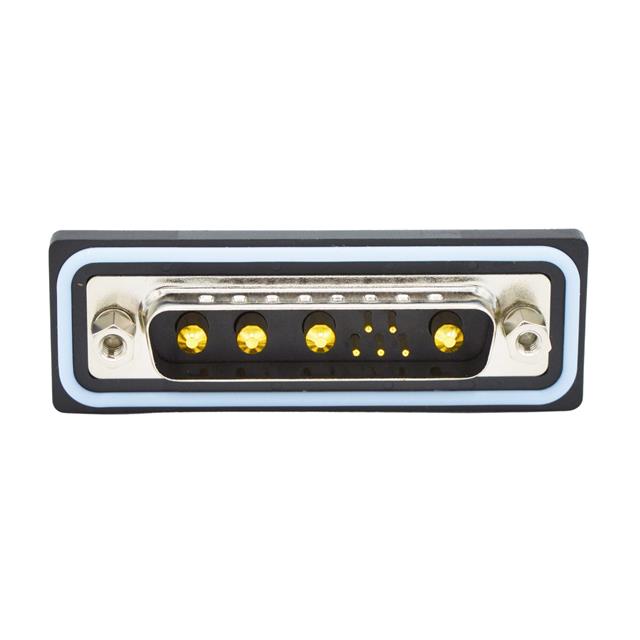

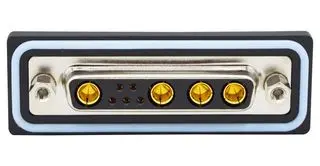

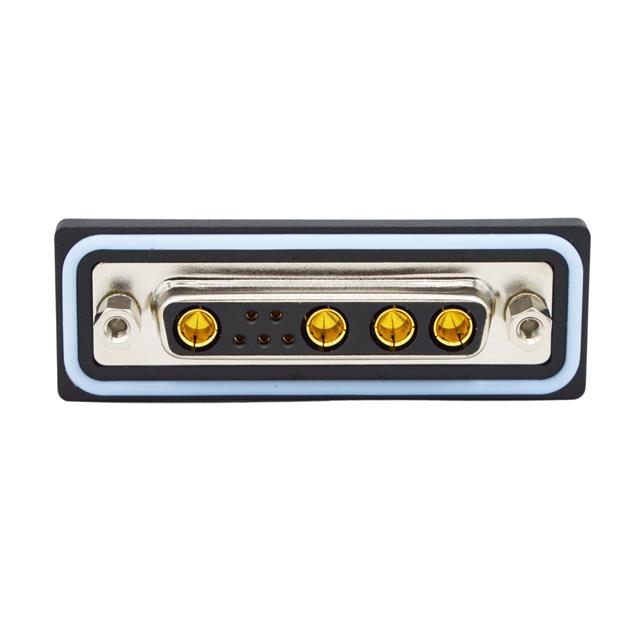

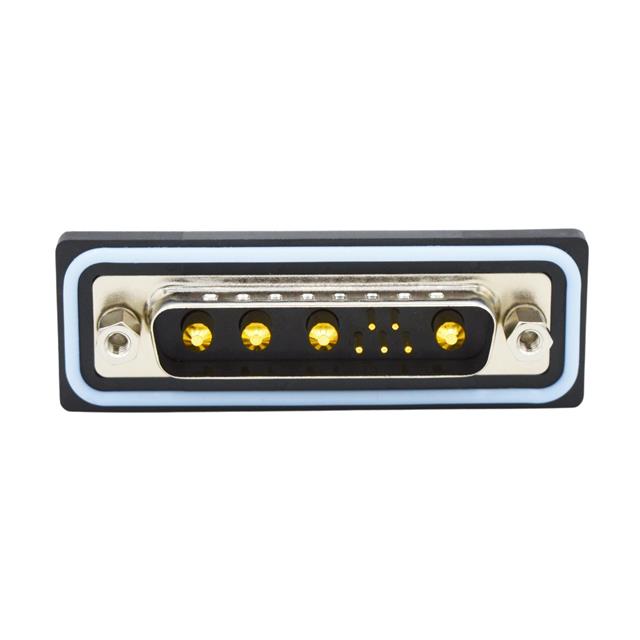

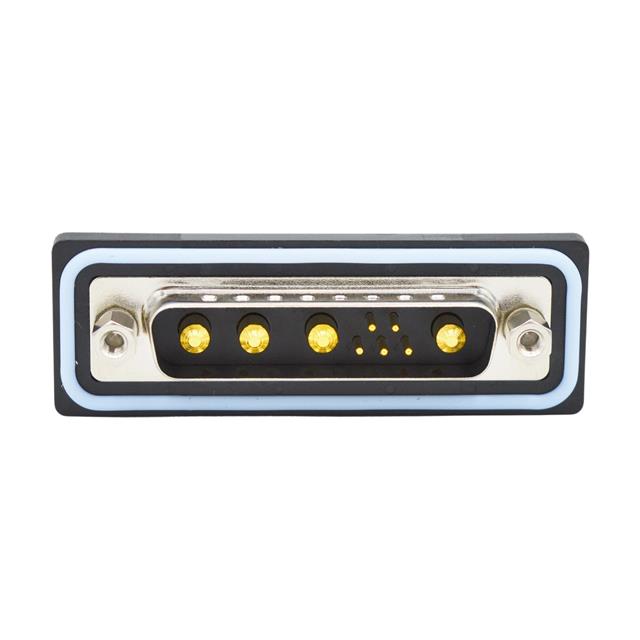

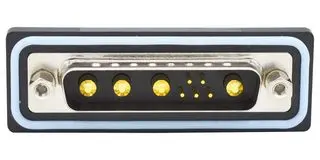

CONN D-SUB PLUG 9P PNL MNT SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish | Ingress Protection | Flange Feature | Contact Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Connector Style | Connector Type | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Shell Material, Finish | Features | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Grounding Indents | 2 | Flash | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Grounding Indents | 2 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Receptacle Female Sockets | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | 2 | Flash | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Receptacle Female Sockets | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Board Lock | 2 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Grounding Indents | 2 | Flash | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Board Lock Grounding Indents | 2 | Flash | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Receptacle Female Sockets | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | 2 | Flash | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Board Lock Grounding Indents | 2 | 30 Áin | 0.76 Ám | |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Board Lock Grounding Indents | 2 | Flash | ||
NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Signal and Power | Solder | DB B - 9W4 | 3 | Combo D-Sub | Plug Male Pins | Panel Mount Through Hole | 4 | 5 | Nickel Plated Steel | Grounding Indents | 2 | 30 Áin | 0.76 Ám |
