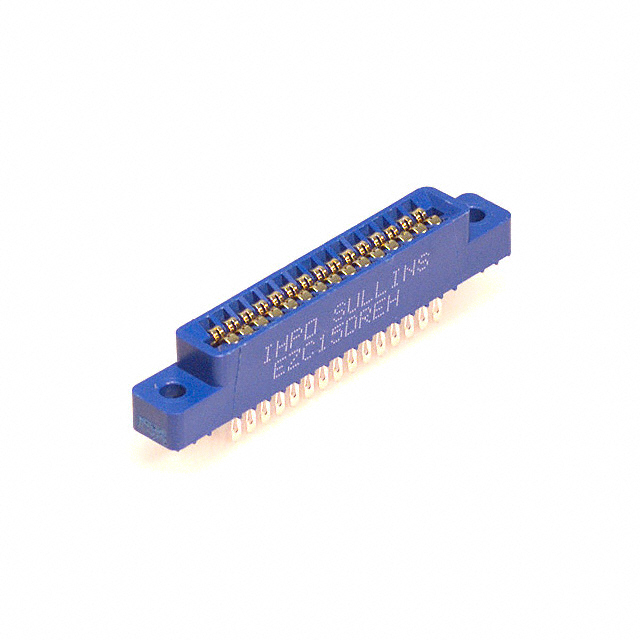

EZC15 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 30POS 0.100
| Part | Material - Insulation | Gender | Contact Material | Read Out | Mounting Type | Card Thickness | Card Thickness | Contact Type | Number of Positions/Bay/Row | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination | Pitch | Pitch | Number of Positions | Contact Finish | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Phosphor Bronze | Dual | Through Hole | 1.57 mm | 0.062 in | Hairpin Bellows | 15 | 2 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Solder | 0.1 " | 2.54 mm | 30 | Gold | Blue | ||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Phosphor Bronze | Dual | Panel Mount | 1.57 mm | 0.062 in | Full Bellows | 15 | 2 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Solder Eyelet(s) | 0.1 " | 2.54 mm | 30 | Gold | Blue | 0.125 " | 3.18 mm |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Phosphor Bronze | Dual | Through Hole | 1.57 mm | 0.062 in | Full Bellows | 15 | 2 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Solder | 0.1 " | 2.54 mm | 30 | Gold | Blue | 0.125 " | 3.18 mm |
