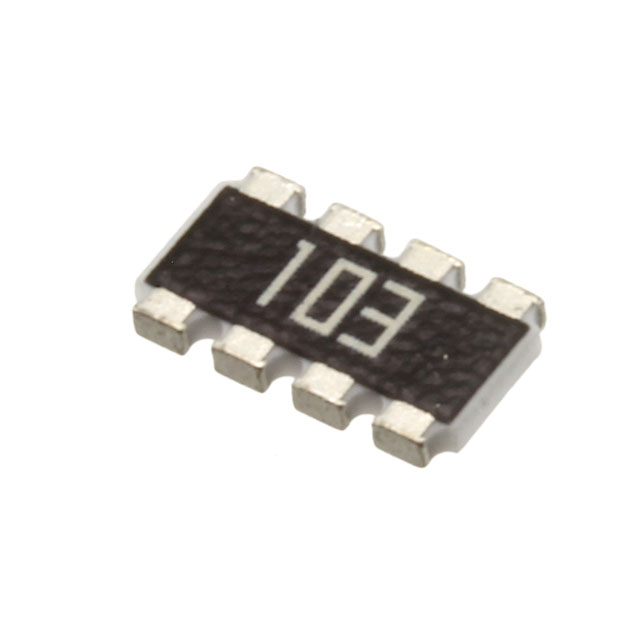

YC324-FK Series

Manufacturer: YAGEO

Catalog

Catalog

RES ARRAY 4 RES 432K OHM 2012

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance (Ohms)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Power Per Element	Tolerance	Number of Resistors	Circuit Type	Grade	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Pins	Temperature Coefficient	Qualification	Resistance (Ohms) [custom]	Resistance (Ohms)
YAGEO YC324-FK-07432KL	5.08 mm	0.126 in	0.2 in	3.2 mm	432k	0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200
YAGEO YC324-FK-071K3L	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200	1.3 kOhms
YAGEO YC324-FK-0762KL	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200	62 Ohms
YAGEO YC324-FK-074K53L	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200		4.53 kOhms
YAGEO YC324-FK-07137KL	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200	137 kOhms
YAGEO YC324-FK-0718RL	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200	18 Ohms
YAGEO YC324-FK-07931RL	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200		931 Ohms
YAGEO YC324-FK-07100KL	5.08 mm	0.126 in	0.2 in	3.2 mm	100k	0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200
YAGEO YC324-FK-0775KL	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200	75 kOhms
YAGEO YC324-FK-07301RL	5.08 mm	0.126 in	0.2 in	3.2 mm		0.7 mm	0.028 "	2012 Convex Long Side Terminals	125 mW	1 %	4	Isolated	Automotive	Surface Mount	DDRAM SDRAM	155 C	-55 C	8	200 ppm/°C	AEC-Q200		301 Ohms
