CC2430 Series

System-on-Chip Solution for 2.4 GHz IEEE 802.15.4 / ZigBee™

Catalog

System-on-Chip Solution for 2.4 GHz IEEE 802.15.4 / ZigBee™

Part	Supplied Contents	For Use With/Related Products	Type	Frequency	Data Rate (Max)	Mounting Type	Current - Transmitting	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RF Family/Standard	Power - Output	Supplier Device Package	Protocol	GPIO	Memory Size	Memory Size [custom]	Memory Size [custom]	Memory Size [custom]
Texas Instruments CC2430-CC2591EMK	Board(s)	CC2430 CC2591	802.15.4 (ZigBee®) Transceiver	2.4 GHz

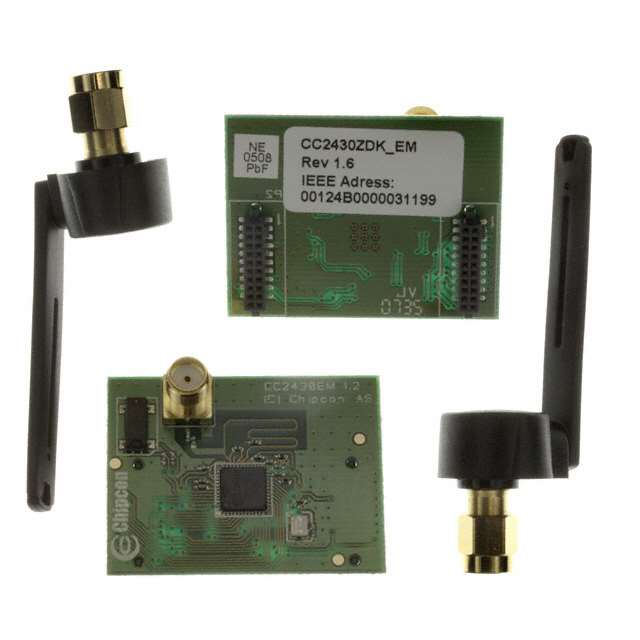

Texas Instruments CC2430EMK	Accessories Board(s)	CC2430	802.15.4 (ZigBee®) Transceiver	2.4 GHz
Texas Instruments CC2430F128RTCR			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21	8 kB 128 kB
Texas Instruments CC2430F64RTCRG3			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21	8 kB 64 kB
Texas Instruments CC2430ZF128RTCRG3			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21	8 kB 128 kB
Texas Instruments CC2430F32RTCR			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21		32 kB	8 kB
Texas Instruments CC2430-CC2590EMK	Accessories Board(s)	CC2430	802.15.4 (ZigBee®) Transceiver	2.4 GHz
Texas Instruments CC2430F64RTCR			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21	8 kB 64 kB
Texas Instruments CC2430ZF128RTC			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21		128 kB		8 kB
Texas Instruments CC2430ZF128RTCR			TxRx + MCU	2.4 GHz	250 kbps	Surface Mount	26.9 mA	26.7 mA	3.6 V	2 V	SPI USART	-92 dBm	85 °C	-40 °C	48-VFQFN Exposed Pad	802.15.4	0 dBm	48-VQFN (7x7)	Zigbee®	21		128 kB		8 kB

Catalog

System-on-Chip Solution for 2.4 GHz IEEE 802.15.4 / ZigBee™

Key Features

• RF/Layout2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core)Excellent receiver sensitivity and robustness to interferersVery few external componentsOnly a single crystal needed for mesh network systemsRoHS compliant 7x7mm QLP48 packageLow PowerLow current consumption (RX: 27 mA, TX: 27 mA, microcontroller running at 32 MHz)Only 0.5 µA current consumption in powerdown mode, where external interrupts or the RTC can wake up the system0.3 µA current consumption in stand-by mode, where external interrupts can wake up the systemVery fast transition times from low-power modes to active mode enables ultra low average power consumption in low dutycycle systemsWide supply voltage range (2.0V - 3.6V)MicrocontrollerHigh performance and low power 8051 microcontroller core32, 64 or 128 KB in-system programmable flash8 KB RAM, 4 KB with data retention in all power modesPowerful DMA functionalityWatchdog timerOne IEEE 802.15.4 MAC timer, one general 16-bit timer and two 8-bit timersHardware debug supportPeripheralsCSMA/CA hardware support.Digital RSSI / LQI supportBattery monitor and temperature sensor12-bit ADC with up to eight inputs and configurable resolutionAES security coprocessorTwo powerful USARTs with support for several serial protocols21 general I/O pins, two with 20mA sink/source capabilityDevelopment toolsPowerful and flexible development tools availableAPPLICATIONS2.4 GHz IEEE 802.15.4 systemsZigBee™ systemsHome/building automationIndustrial Control and MonitoringLow power wireless sensor networksPC peripheralsSet-top boxes and remote controlsConsumer ElectronicsRF/Layout2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core)Excellent receiver sensitivity and robustness to interferersVery few external componentsOnly a single crystal needed for mesh network systemsRoHS compliant 7x7mm QLP48 packageLow PowerLow current consumption (RX: 27 mA, TX: 27 mA, microcontroller running at 32 MHz)Only 0.5 µA current consumption in powerdown mode, where external interrupts or the RTC can wake up the system0.3 µA current consumption in stand-by mode, where external interrupts can wake up the systemVery fast transition times from low-power modes to active mode enables ultra low average power consumption in low dutycycle systemsWide supply voltage range (2.0V - 3.6V)MicrocontrollerHigh performance and low power 8051 microcontroller core32, 64 or 128 KB in-system programmable flash8 KB RAM, 4 KB with data retention in all power modesPowerful DMA functionalityWatchdog timerOne IEEE 802.15.4 MAC timer, one general 16-bit timer and two 8-bit timersHardware debug supportPeripheralsCSMA/CA hardware support.Digital RSSI / LQI supportBattery monitor and temperature sensor12-bit ADC with up to eight inputs and configurable resolutionAES security coprocessorTwo powerful USARTs with support for several serial protocols21 general I/O pins, two with 20mA sink/source capabilityDevelopment toolsPowerful and flexible development tools availableAPPLICATIONS2.4 GHz IEEE 802.15.4 systemsZigBee™ systemsHome/building automationIndustrial Control and MonitoringLow power wireless sensor networksPC peripheralsSet-top boxes and remote controlsConsumer Electronics

Description

The CC2430 comes in three different flash versions: CC2430F32/64/128, with 32/64/128 KB of flash memory respectively. The CC2430 is a true System-on-Chip (SoC) solution specifically tailored for IEEE 802.15.4 and ZigBee® applications. It enables ZigBee® nodes to be built with very low total bill-ofmaterial costs. The CC2430 combines the excellent performance of the leading CC2420 RF transceiver with an industry-standard enhanced 8051 MCU, 32/64/128 KB flash memory, 8 KB RAM and many other powerful features. Combined with the industry leading ZigBee® protocol stack (Z-Stack™) from Texas Instruments, the CC2430 provides the market’s most competitive ZigBee® solution. The CC2430 is highly suited for systems where ultra low power consumption is required. This is ensured by various operating modes. Short transition times between operating modes further ensure low power consumption. The CC2430 comes in three different flash versions: CC2430F32/64/128, with 32/64/128 KB of flash memory respectively. The CC2430 is a true System-on-Chip (SoC) solution specifically tailored for IEEE 802.15.4 and ZigBee® applications. It enables ZigBee® nodes to be built with very low total bill-ofmaterial costs. The CC2430 combines the excellent performance of the leading CC2420 RF transceiver with an industry-standard enhanced 8051 MCU, 32/64/128 KB flash memory, 8 KB RAM and many other powerful features. Combined with the industry leading ZigBee® protocol stack (Z-Stack™) from Texas Instruments, the CC2430 provides the market’s most competitive ZigBee® solution. The CC2430 is highly suited for systems where ultra low power consumption is required. This is ensured by various operating modes. Short transition times between operating modes further ensure low power consumption.
