GBC01D Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

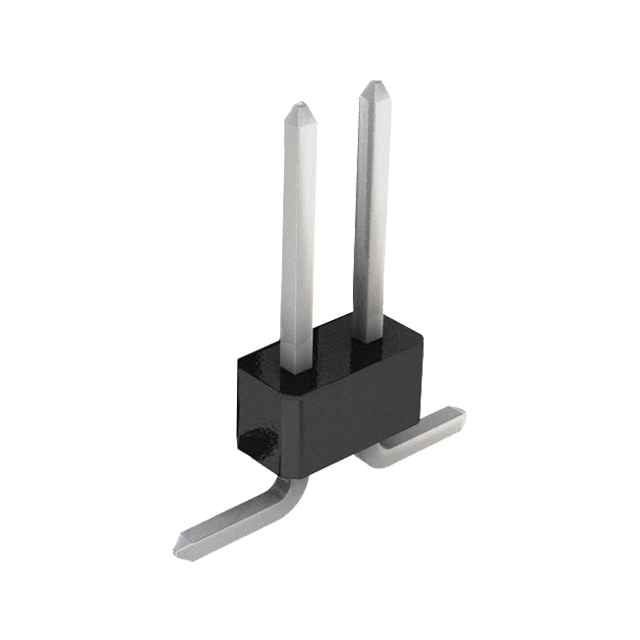

CONN HEADER SMD 2POS 2.54MM
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Insulation Material | Shrouding | Contact Length - Mating [x] | Contact Length - Mating | Insulation Color | Termination | Contact Material | Style | Number of Positions Loaded | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Finish - Post | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Type | Connector Type | Number of Rows | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Material Flammability Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 10 çin | 0.25 çm | 3 A | Nylon 9T Polyamide (PA9T) | Unshrouded | 0.23 in | 5.84 mm | Black | Solder | Phosphor Bronze | Board to Board Cable | All | Gold | 0.1 in | 2.54 mm | Tin | Square | 2.54 µm | 100 µin | -65 ░C | 150 °C | Push-Pull | Surface Mount | Breakaway Header | 2 | 2.54 mm | 0.1 in | 2 | UL94 V-0 | Male Pin |
