726-027 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 27POS 0.125

Part	Material - Insulation	Termination Rows	Card Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions/Bay/Row	Gender	Number of Rows	Color	Termination	Contact Type	Mounting Type	Read Out	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 726-027-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-027-553-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit Wire Wrap	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm

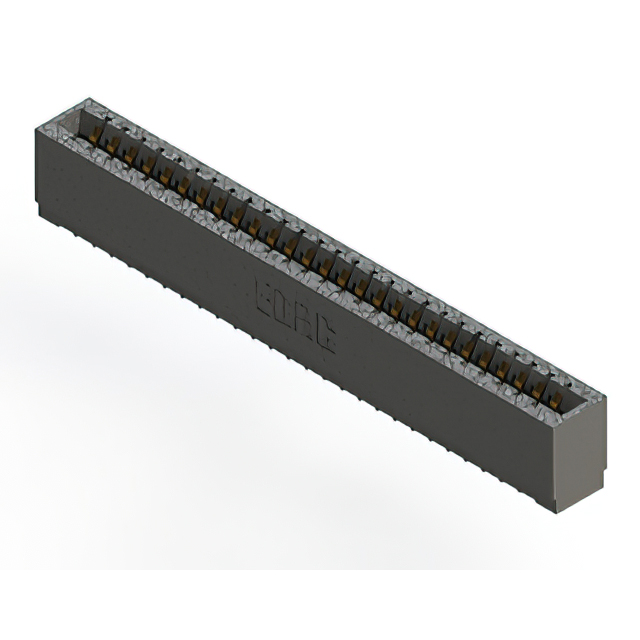

EDAC Inc. 726-027-525-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-027-540-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit Wire Wrap	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-027-545-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit Wire Wrap	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm

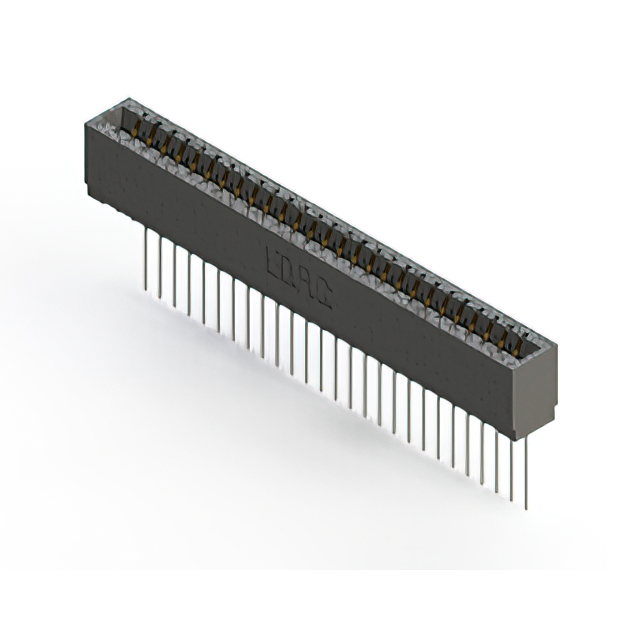

EDAC Inc. 726-027-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit Wire Wrap	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-027-527-101	Polyester Thermoplastic	1	Non Specified - Single Edge	3.18 mm	0.125 in	-40 C	105 ░C	27	27	Female	1	Black	Press-Fit	Cantilever	Through Hole	Single	Gold	Copper Alloy	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
