1040A Series
Manufacturer: Belden Inc.
Beta
⌘K

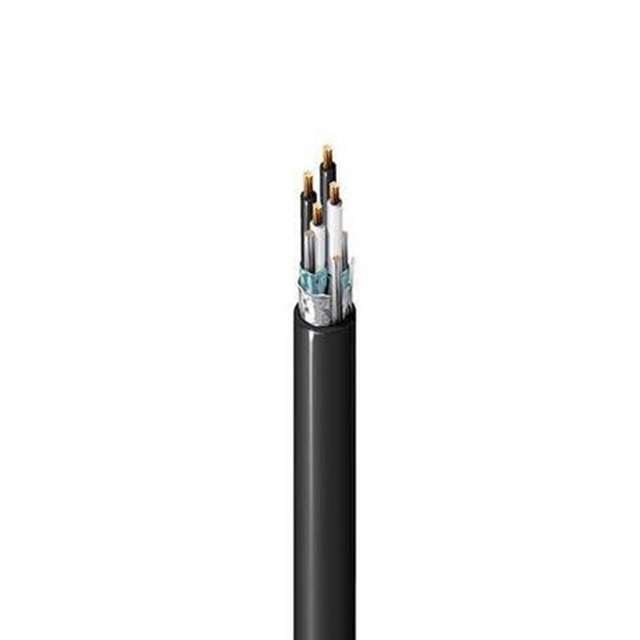

MULTI-PAIR 12COND 16AWG
| Part | Shield Coverage | Shield Material | Shield Type | Cable Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Insulation | Conductor Insulation | Number of Conductors | Wire Gauge | Features | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Foil | Multi-Pair | Copper Bare | 0.67 in | 17.02 mm | Poly-Vinyl Chloride (PVC) | 0.064 " | 1.626 mm | 7 | 24 AWG | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 12 | 16 AWG | Drain Wire Rip Cord | Black |
