BZ-2R5 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Differential Travel	Differential Travel	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - AC	Mounting Type	Termination Style	Operating Force [Min]	Operating Force [Max]	Voltage Rating - DC	Actuator Type	Operating Position	Operating Position	Ingress Protection	Overtravel	Overtravel	Release Force	Circuit	Pretravel	Pretravel

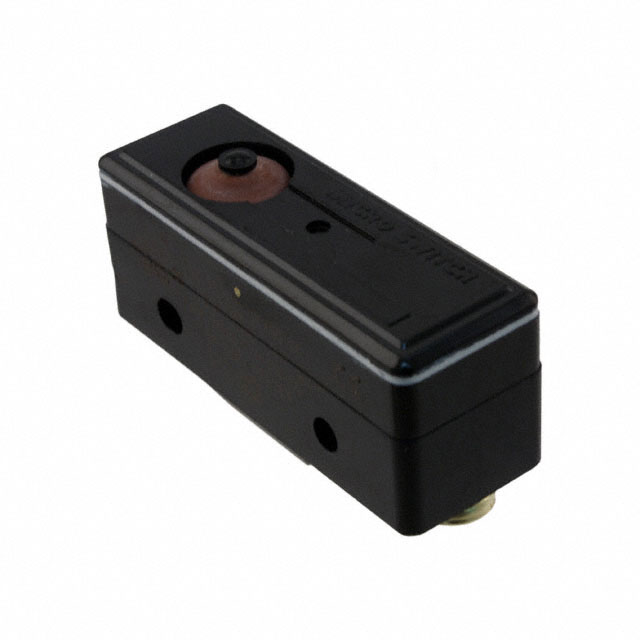

Honeywell Sensing and Productivity Solutions BZ-2R5551-A2	0.002 in	0.05 mm	On-Mom	15 A 500 mA	85 °C	-55 °C	20000000 Cycles	125 V	Chassis Mount	Screw Terminal	227 gf	425 gf	125 VDC	Round (Pin Plunger)	0.625 in	15.9 mm	IP64 - Dust Tight Water Resistant	0.13 mm	0.005 in	113 gf	SPDT
Honeywell Sensing and Productivity Solutions BZ-2R55-P4-S	0.002 in	0.05 mm	On-Mom	15 A 500 mA	85 °C	-55 °C	20000000 Cycles	125 V	Chassis Mount	Screw Terminal	255 gf	425 gf	125 VDC	Round (Pin Plunger)	0.625 in	15.9 mm		0.13 mm	0.005 in	113 gf	SPDT
Honeywell Sensing and Productivity Solutions BZ-2R53-A2	0.002 in	0.05 mm	On-Mom	15 A 500 mA	85 °C	-55 °C	20000000 Cycles	125 V	Chassis Mount	Screw Terminal	255 gf	368 gf	125 VDC	Round (Pin Plunger)	0.625 in	15.9 mm		0.13 mm	0.005 in	113 gf	SPDT	0.015 in	0.4 mm
